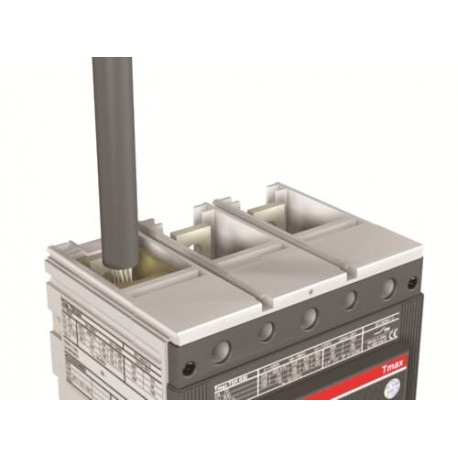

1SDA055017R1 ABB KIT FC Cu 1x240mm2 T5 400 4pcs
1SDA055017R1
055017
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for professional panel wiring, the 1SDA055017R1 ABB KIT FC Cu 1x240mm2 T5 400 4pcs enables dependable cable termination on molded case circuit breakers. Such factory-matched kits ensure optimal contact area and mechanical security inside low-voltage switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3655690
- E-Number (Norway): 4383676
- EAN: 8015644561628
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.487 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 145 mm
- Package Level 1 Height: 25 mm
- Package Level 1 Depth / Length: 220 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3655690 |
| E-Number (Norway) | 4383676 |
| EAN | 8015644561628 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.487 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Depth / Length | 220 mm |
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 EAN | 8015644561628 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0825 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
