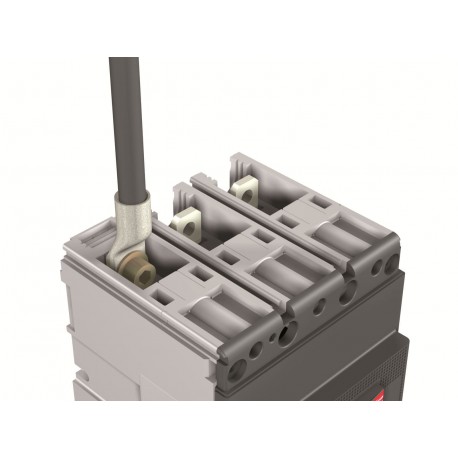

ABB 1SDA066850R1 1SDA066850R1 ABB KIT F XT1 4pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066850R1 ABB KIT F XT1 4pcs

1SDA066850R1

066850

ABB

1 Pcs.

KIT F XT1 4pcs F 4UD - XT1 TERMINALS

Automation > Connection vane/phase spreader
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA066850R1 is a front terminal kit engineered for circuit breaker installations, facilitating reliable busbar and cable hookups. These hardware sets are routinely implemented within low-voltage switchboards to maintain secure structural and electrical continuity for protective devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KXT1F-4PC
  • E-Number (Finland): 3642228
  • EAN: 8015644694685
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.05 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 150 mm
  • Package Level 1 Height: 15 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKXT1F-4PC
E-Number (Finland)3642228
EAN8015644694685
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.05 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Height15 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight0.05 kg
Package Level 1 EAN8015644694685
Additional Information
Configuration TypeLoose or configurable
Number of Poles4
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
StandardsIEC60947-2
UL489
Suitable ForXT1
Suitable for Product ClassSACE Tmax XT
Terminal Connection TypeFixed Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0811
Classifications
ETIM 7EC002019 - Connection vane/phase spreader
ETIM 8EC002019 - Connection vane/phase spreader
ETIM 9EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Object Classification CodeQ
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
