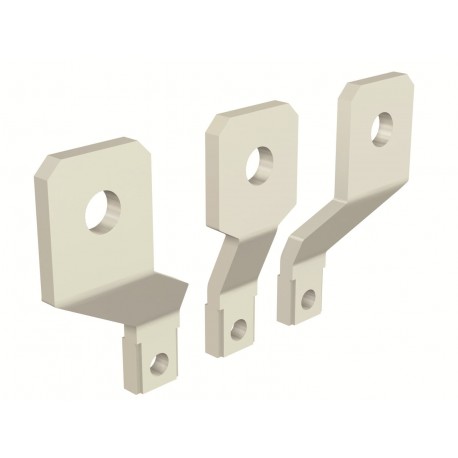

ABB 1SDA066889R1 1SDA066889R1 ABB KIT ES XT1 3pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066889R1 ABB KIT ES XT1 3pcs

1SDA066889R1

066889

ABB

1 Pcs.

KIT ES XT1 3pcs TERMINALS ES 3UD - XT1

Automation > Connection vane/phase spreader
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA066889R1 ABB KIT ES XT1 3pcs is an electrical hardware kit intended for extending or adapting circuit breaker terminals in control panels. Installers utilize these specialized connection accessories to optimize cable routing and maintain safety standards in distribution enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT1ES-3PC
  • E-Number (Finland): 3642217
  • E-Number (Norway): 4385004
  • EAN: 8015644007737
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.281 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 150 mm
  • Package Level 1 Height: 20 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT1ES-3PC
E-Number (Finland)3642217
E-Number (Norway)4385004
EAN8015644007737
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.281 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Height20 mm
Package Level 1 Depth / Length220 mm
Package Level 1 Gross Weight0.296 kg
Package Level 1 EAN8015644007737
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT1
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0805
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Object Classification CodeQ
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
