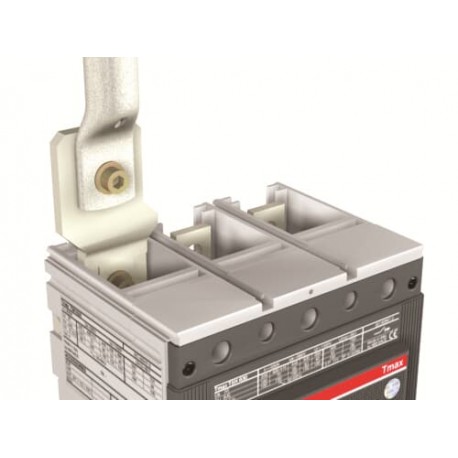

ABB 1SDA055038R1 1SDA055038R1 ABB KIT ES T5 6pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055038R1 ABB KIT ES T5 6pcs

1SDA055038R1

055038

ABB

1 Pcs.

KIT ES T5 6pcs TERMINALS ES 6UD - T5

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA055038R1 ABB KIT ES T5 6pcs is a set of extended spread front terminals designed to simplify cable termination on molded case circuit breakers within electrical switchboards. These accessories are utilized to provide additional clearance between phases, accommodating larger cable lugs in industrial power installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT5ES-6
  • E-Number (Sweden): 3180934
  • EAN: 8015644561833
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.4 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 170 mm
  • Package Level 1 Height: 35 mm
  • Package Level 1 Depth / Length: 230 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT5ES-6
E-Number (Sweden)3180934
EAN8015644561833
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.4 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width170 mm
Package Level 1 Height35 mm
Package Level 1 Depth / Length230 mm
Package Level 1 Gross Weight1.4 kg
Package Level 1 EAN8015644561833
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT5
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Number of Poles3P
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000436R0823
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
