View larger
1SDA013954R1 ABB KIT EF T6 800 S6 800 6pcs
1SDA013954R1
013954
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

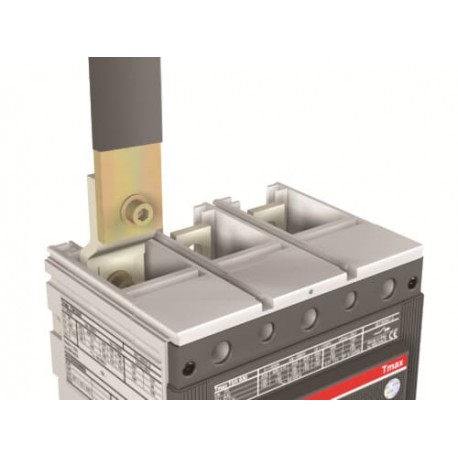

An Abb KIT EF T6 800 S6 800 6pcs is an extended terminal kit used to reconfigure the connection points of molded case circuit breakers for specialized busbar alignments. Accessory hardware like this ensures adaptable installation layouts within industrial power distribution switchboards.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT6EF-6
- EAN: 8015644139544
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.33 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 200 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Depth / Length: 200 mm
- Package Level 1 Gross Weight: 1.4 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT6EF-6 |
| EAN | 8015644139544 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.33 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8015644139544 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | S6 |
| T6 | |
| Suitable for Product Class | SACE Tmax T |
| SACE Isomax | |
| Technical | |
| Device | S6 800 |
| Gross Volume | 800 cm³ |
| Number of Poles | 3P |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000479R0822 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
