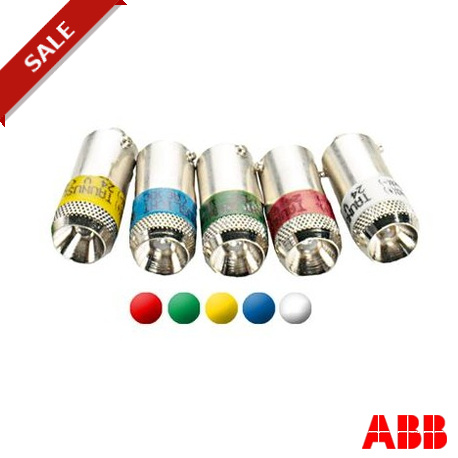

ABB KA2-2234 KA2-2234 1SFA616921R2234 ABB KA2-2234 LED bulb View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KA2-2234 1SFA616921R2234 ABB KA2-2234 LED bulb

KA2-2234

1SFA616921R2234

ABB

1 Pcs.

KA2-2234 LED bulb KA2-2234 230V AC/DC Blue LED

Automation > Single LED
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Blue signaling illumination is generated by the Abb KA2-2234 LED bulb, designed for integration into industrial operator interfaces and pilot devices. Such lamps offer dependable visual feedback across automated manufacturing systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Accessory Type: LED and filament bulbs
  • Color: Blue
  • Illumination: Illuminated
  • Lamp Type: LED
  • Luminance: 220 millicandela
  • Product Main Type: KA2
  • Product Name: LED bulb
  • Product Range: Compact and Modular range
  • Product Type: KA
  • Rated Current (I n ): 4 mA
  • Rated Operational Voltage: 230 V AC/DC
  • RoHS Date: 0609 3
  • Service Life: 25000 hour(s)
  • Suitable For: CL
  • Wave Length: 470 nm

More info

▲

LED bulb - Blue - Rated Voltage 230 V, AC/DC - Rated Current 4 mA - Service Life 25 000 h

Ordering

  • EAN:
    7320500359631
  • Minimum Order Quantity:
    20 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Width:
    0.010m
  • Product Net Height:
    0.010m
  • Product Net Depth:
    0.025m
  • Product Net Weight:
    0.005kg

Container Information

  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Height:
    0.01 m
  • Package Level 1 Length:
    0.025 m
  • Package Level 1 Gross Weight:
    0.005 kg

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accessory Type:
    LED and filament bulbs
  • Color:
    Blue
  • Illumination:
    Illuminated
  • Lamp Type:
    LED
  • Luminance:
    220 millicandela
  • Product Main Type:
    KA2
  • Product Name:
    LED bulb
  • Product Range:
    Compact and Modular range
  • Product Type:
    KA
  • Rated Current (In):
    4 mA
  • Rated Operational Voltage:
    230 V AC/DC
  • RoHS Date:
    0609 3
  • Service Life:
    25000 hour(s)
  • Suitable For:
    CL
  • Wave Length:
    470 nm

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002024 - Accessories for control circuit devices
  • ETIM 5:
    EC002024 - Accessories for control circuit devices
  • Object Classification Code:
    E
  • UNSPSC:
    39120000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
