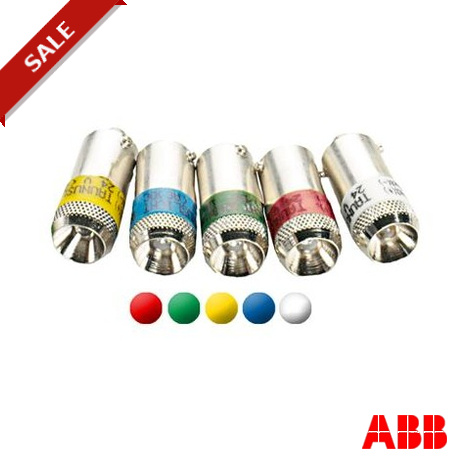

ABB KA2-2225 KA2-2225 1SFA616921R2225 ABB KA2-2225 LED bulb View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KA2-2225 1SFA616921R2225 ABB KA2-2225 LED bulb

KA2-2225

1SFA616921R2225

ABB

1 Pcs.

KA2-2225 LED bulb WHITE 230V AC 4 MA

Automation > Single LED
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A white Abb KA2-2225 LED bulb acts as an internal light source for modular pilot devices, ensuring high visibility on electrical enclosures and machine interfaces. These reliable bulbs support continuous monitoring in heavy industrial settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Accessory Type: LED and filament bulbs
  • Color: White
  • IIT Publishing Status: Level 0 - Information enabled
  • Illumination: Illuminated
  • Lamp Type: LED
  • Luminance: 350 millicandela
  • Product Main Type: KA2
  • Product Name: LED bulb
  • Product Range: Compact and Modular range
  • Product Type: KA
  • Rated Current (I n ): 4 mA
  • Rated Operational Voltage: 230 V AC
  • RoHS Date: 0609 3
  • Service Life: 25000 hour(s)
  • Suitable For: Choose the same colour for the LED and the lamp cap ore else use a clear lamp cap.

More info

▲

LED bulb - White - Rated Voltage 230 V, AC - Rated Current 4 mA - Service Life 25 000 h

Ordering

  • EAN:
    7320500201237
  • Minimum Order Quantity:
    20 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Width:
    0.010m
  • Product Net Height:
    0.010m
  • Product Net Depth:
    0.025m
  • Product Net Weight:
    0.004kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Height:
    0.01 m
  • Package Level 1 Length:
    0.025 m
  • Package Level 1 Gross Weight:
    0.004 kg
  • Package Level 2 Units:
    20

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accessory Type:
    LED and filament bulbs
  • Color:
    White
  • IIT Publishing Status:
    Level 0 - Information enabled
  • Illumination:
    Illuminated
  • Lamp Type:
    LED
  • Luminance:
    350 millicandela
  • Product Main Type:
    KA2
  • Product Name:
    LED bulb
  • Product Range:
    Compact and Modular range
  • Product Type:
    KA
  • Rated Current (In):
    4 mA
  • Rated Operational Voltage:
    230 V AC
  • RoHS Date:
    0609 3
  • Service Life:
    25000 hour(s)
  • Suitable For:
    Choose the same colour for the LED and the lamp cap ore else use a clear lamp cap.
  • Wave Length:
    x=0.31 y=3.2 nm

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    8383626
  • ETIM 4:
    EC002024 - Accessories for control circuit devices
  • ETIM 5:
    EC002024 - Accessories for control circuit devices
  • Object Classification Code:
    E
  • UNSPSC:
    39121500

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
