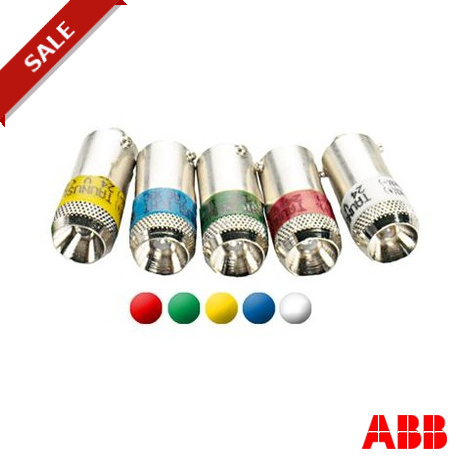

ABB KA2-2145 KA2-2145 1SFA616921R2145 ABB KA2-2145 LED bulb View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KA2-2145 1SFA616921R2145 ABB KA2-2145 LED bulb

KA2-2145

1SFA616921R2145

ABB

1 Pcs.

KA2-2145 LED bulb White LED 110-130Vac/dc

Automation > Single LED
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

White signaling light is delivered by the Abb KA2-2145 LED bulb, built for deployment within control panel pushbuttons and indicator towers. Such components ensure operators maintain clear visibility over equipment status during standard operating procedures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Accessory Type: LED and filament bulbs
  • Color: White
  • Illumination: Illuminated
  • Lamp Type: LED
  • Luminance: 350 millicandela
  • Order Multiple: 1 piece
  • Product Main Type: KA2
  • Product Name: LED bulb
  • Product Range: Compact and Modular range
  • Product Type: KA
  • Rated Current (I n ): 4-6 mA
  • Rated Operational Voltage: 110-134 V AC/DC
  • RoHS Date: 0609 3
  • Service Life: 25000 hour(s)
  • Suitable For: CL

More info

▲

LED bulb - White - Rated Voltage 110-130 V, AC/DC - Rated Current 4-6 mA - Service Life 25 000 h

Ordering

  • EAN:
    7320500240434
  • Minimum Order Quantity:
    20 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Width:
    0.010m
  • Product Net Height:
    0.010m
  • Product Net Depth:
    0.025m
  • Product Net Weight:
    0.004kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Height:
    0.01 m
  • Package Level 1 Length:
    0.025 m
  • Package Level 1 Gross Weight:
    0.004 kg

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accessory Type:
    LED and filament bulbs
  • Color:
    White
  • Illumination:
    Illuminated
  • Lamp Type:
    LED
  • Luminance:
    350 millicandela
  • Order Multiple:
    1 piece
  • Product Main Type:
    KA2
  • Product Name:
    LED bulb
  • Product Range:
    Compact and Modular range
  • Product Type:
    KA
  • Rated Current (In):
    4-6 mA
  • Rated Operational Voltage:
    110-134 V AC/DC
  • RoHS Date:
    0609 3
  • Service Life:
    25000 hour(s)
  • Suitable For:
    CL

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    8383644
  • ETIM 4:
    EC002024 - Accessories for control circuit devices
  • ETIM 5:
    EC002024 - Accessories for control circuit devices
  • Object Classification Code:
    E
  • UNSPSC:
    39121500

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
