View larger
Images are for illustrative purposes only. Please refer to data sheet for details

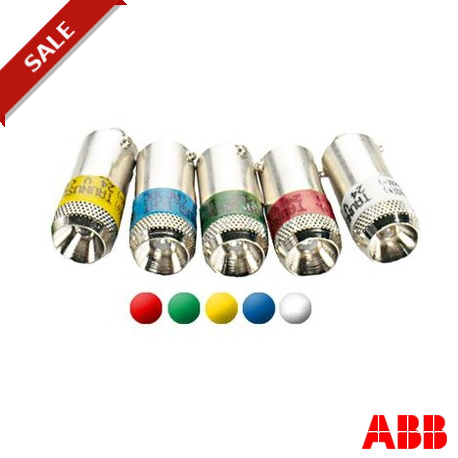

KA2-2131 1SFA616921R2131 ABB KA2-2131 LED bulb
KA2-2131
1SFA616921R2131
ABB
1 Pcs.
KA2-2131 LED bulb
RED 110-130V AC 6 MA
Automation > Single LED
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲LED bulb - Red - Rated Voltage 110-130 V, AC - Rated Current 4-6 mA - Service Life 25 000 h
Ordering
- EAN:
- 7320500201145
- Minimum Order Quantity:
- 20 piece
- Customs Tariff Number:
- 85389099
Dimensions
- Product Net Width:
- 0.010m
- Product Net Height:
- 0.010m
- Product Net Depth:
- 0.025m
- Product Net Weight:
- 0.004kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.06 m
- Package Level 1 Height:
- 0.01 m
- Package Level 1 Length:
- 0.025 m
- Package Level 1 Gross Weight:
- 0.004 kg
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Additional Information
- Accessory Type:
- LED and filament bulbs
- Color:
- Red
- IIT Publishing Status:
- Level 0 - Information enabled
- Illumination:
- Illuminated
- Lamp Type:
- LED
- Luminance:
- 60-100 millicandela
- Product Main Type:
- KA2
- Product Name:
- LED bulb
- Product Range:
- Compact and Modular range
- Product Type:
- KA
- Rated Current (In):
- 4-6 mA
- Rated Operational Voltage:
- 110-130 V AC
- RoHS Date:
- 0609 3
- Service Life:
- 25000 hour(s)
- Suitable For:
- CL
- Wave Length:
- 630 nm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SFC151003C0201
- Declaration of Conformity - CE:
- 1SFA1-3
- RoHS Information:
- 1SFC151017D0202
Classifications
- E-nummer:
- 8383610
- ETIM 4:
- EC002024 - Accessories for control circuit devices
- ETIM 5:
- EC002024 - Accessories for control circuit devices
- Object Classification Code:
- E
- UNSPSC:
- 39121500
