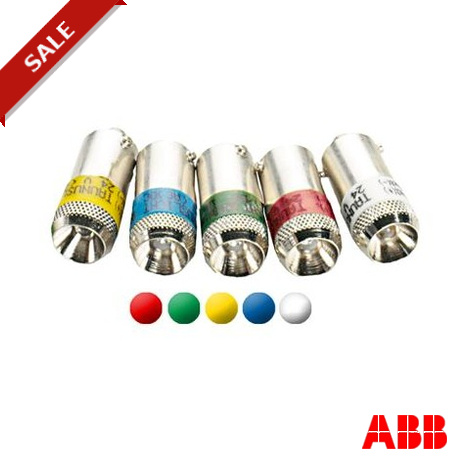

ABB KA2-2054 KA2-2054 1SFA616921R2054 ABB KA2-2054 LED bulb View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KA2-2054 1SFA616921R2054 ABB KA2-2054 LED bulb

KA2-2054

1SFA616921R2054

ABB

1 Pcs.

KA2-2054 LED bulb BLUE LED 60VAC/DC

Automation > Single LED
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb KA2-2054 LED bulb provides reliable status indication within industrial control panels, operator consoles, and heavy-duty machinery interface units. These lamps illuminate pushbuttons and pilot lights to give operators clear visual feedback regarding system states and operational sequences.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Accessory Type: LED and filament bulbs
  • Color: Blue
  • Illumination: Illuminated
  • Lamp Type: LED
  • Luminance: 600 millicandela
  • Order Multiple: 1 piece
  • Product Main Type: KA2
  • Product Name: LED bulb
  • Product Range: Compact and Modular range
  • Product Type: KA
  • Rated Current (I n ): 10 mA
  • Rated Operational Voltage: 60 V AC/DC
  • RoHS Date: 0609 3
  • Service Life: >50000 hour(s)
  • Suitable For: CL

More info

▲

LED bulb - Blue - Rated Voltage 60 V, (AC)/DC - Rated Current 10 mA - Service Life >50 000 h

Ordering

  • EAN:
    7320500258675
  • Minimum Order Quantity:
    20 piece
  • Customs Tariff Number:
    85369001

Dimensions

  • Product Net Width:
    0.010m
  • Product Net Height:
    0.010m
  • Product Net Depth:
    0.025m
  • Product Net Weight:
    0.001kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Height:
    0.01 m
  • Package Level 1 Length:
    0.025 m
  • Package Level 1 Gross Weight:
    0.001 kg

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accessory Type:
    LED and filament bulbs
  • Color:
    Blue
  • Illumination:
    Illuminated
  • Lamp Type:
    LED
  • Luminance:
    600 millicandela
  • Order Multiple:
    1 piece
  • Product Main Type:
    KA2
  • Product Name:
    LED bulb
  • Product Range:
    Compact and Modular range
  • Product Type:
    KA
  • Rated Current (In):
    10 mA
  • Rated Operational Voltage:
    60 V AC/DC
  • RoHS Date:
    0609 3
  • Service Life:
    >50000 hour(s)
  • Suitable For:
    CL
  • Wave Length:
    470 nm

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002024 - Accessories for control circuit devices
  • ETIM 5:
    EC002024 - Accessories for control circuit devices
  • Object Classification Code:
    E
  • UNSPSC:
    39121500
