View larger
Images are for illustrative purposes only. Please refer to data sheet for details

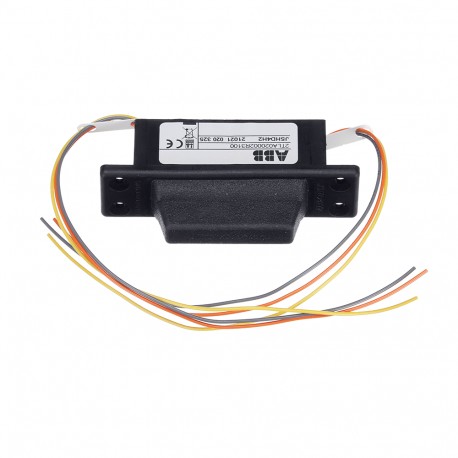

2TLA020002R0200 ABB JSHD4H2A 3-pos device external Mounting. 6x150mm leads.
2TLA020002R0200
020002
ABB
1 Pcs.
JSHD4H2A 3-pos device external Mounting. 6x150mm leads.
JSHD4H2A Interruption. 3 pos. Mon. Exterior
JSHD4H2A 0.15m Three-position dual pushbutton
Automation > Agreement switch
Control devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369095 |
| Product Main Type | JSHD4H2 |
| Product Name | Three-position dual pushbutton |
| Function | Three-position dual pushbutton usual mounted on another device, e.g. a robot pendant |
| Status Indicator | No |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010126L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length | 52 mm |
| Product Net Height | 56 mm |
| Product Net Width | 106 mm |
| Product Net Weight | 0.154 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | CE |
| cURus | |
| Kiwa | |
| Performance Level (PL) | Up to e |
| Technical | |
| Communication Interface | Contacts |
| Connection Configuration | 6 leads, 150 mm each |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Rated Operational Current DC-12 (Ie) | (24 V) 0.02 A |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Storage -20 ... 80 °C | |
| Degree of Protection | IP65 |
| Material | Housing: PP (polypropylene with mineral filling) |
| Rubber: Thermoplastic elastomer on PP basis | |
| Steering T: PP with fiberglass filling | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | No certification needed |
| cULus Certificate | 2TLC010153D0201 |
| cURus Certificate | 2TLC010153D0201 |
| Declaration of Conformity - CE | 2TLC172022D0201 |
| Declaration of Conformity - UKCA | 2TLC010152D0201 |
| SEMKO Certificate | 2TLC172032D0201 |
| UR Certificate | 2TLC010153D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 174 mm |
| Package Level 1 Depth / Length | 268 mm |
| Package Level 1 Height | 57 mm |
| Package Level 1 Gross Weight | 0.156 kg |
| Package Level 1 EAN | 7350024454833 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371238 |
| ETIM 7 | EC002571 - Agreement switch |
| ETIM 8 | EC002571 - Agreement switch |
| ETIM 9 | EC002571 - Agreement switch |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| Object Classification Code | B |
| Feature Name | Feature Value |
|---|---|
| Forced opening (EF006694) | No |
| Suitable for safety functions (EF001597) | Yes |
| Cross-wire monitoring possible (EF007445) | Yes |
| With status indication (EF001602) | No |
| Type of switching contact (EF003591) | Quick-break switch |
| Rated operation current Ie at DC-12, 24 V (EF007043) | 0.02 A |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of extra push buttons (EF009213) | 0 |
| Type of electric connection (EF003961) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Degree of protection (IP) (EF005474) | IP65 |
