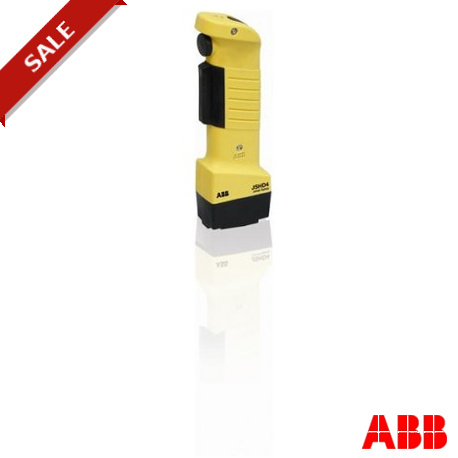

ABB JSHD4-5-AD JSHD4-5-AD 2TLA019995R3600 ABB JSHD4-5-AD Enabling Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

JSHD4-5-AD 2TLA019995R3600 ABB JSHD4-5-AD Enabling Switch

JSHD4-5-AD

2TLA019995R3600

ABB

1 Pcs.

JSHD4-5-AD Enabling Switch JSHD4-5-AD Ergonomic 3 pos control.

Automation > Agreement switch
Control devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operate automated systems safely with the ABB JSHD4-5-AD enabling switch, featuring an ergonomic three-position layout designed to protect personnel during manual interventions. These devices allow operators to halt machine functions instantly by releasing or fully depressing the actuator during unexpected events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance Level (PL): Up to e
  • Safety Category Acc. to ISO 13849-1: 4
  • Product Main Type: JSHD4
  • Product Name: Safety Control Enabling Device
  • Product Net Width: 0.034 m
  • Product Net Height: 0.117 m
  • Product Net Depth: 0.05 m
  • Product Net Weight: 0.311 kg

More info

▲

Three-position device incl. LEDs and top button with M12 connection (8 poles).

Ordering

  • EAN:
    7350024453706
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85369085

Dimensions

  • Product Net Width:
    0.034m
  • Product Net Height:
    0.117m
  • Product Net Depth:
    0.05m
  • Product Net Weight:
    0.311kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.286 m
  • Package Level 1 Height:
    0.103 m
  • Package Level 1 Length:
    0.126 m
  • Package Level 1 Gross Weight:
    0.455 kg

Safety Information

  • Performance Level (PL):
    Up to e
  • Safety Category Acc. to ISO 13849-1:
    4

Additional Information

  • Product Main Type:
    JSHD4
  • Product Name:
    Safety Control Enabling Device

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002611 - Control switch
  • ETIM 5:
    EC002611 - Control switch
  • Object Classification Code:
    B

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
