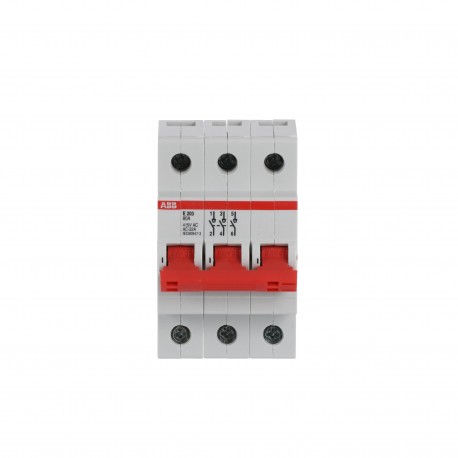

2CDE283001R0080 ABB Isolator E203/80r
2CDE283001R0080
283001
ABB
1 Pcs.
Automation > Main switch for distribution board
E200
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CDE283001R0080 ABB Isolator E203/80r operates as a robust multi-pole circuit isolator designed to interrupt electrical power flow to downstream machinery. Electrical engineers incorporate isolators into industrial switchgear assemblies to guarantee operator safety during maintenance operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 81.9 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Extended Product Lifetime: Product Durability
- End Of Life Disassembling Instructions: 9AKK108469A1170
- Environmental Product Declaration - EPD: 9AKK108471A4712
- Rated Service Short-Circuit Breaking Capacity (I cs ): 25 kA
- Number of Poles: 3P
- Switch Type: Off
- Recommended Screw Driver: Pozidriv 2
- Accessories Available: Yes
- Cover Color: Grey
- Rated Voltage (U r ): 400 V
- Rated Operational Voltage: 230 / 400 V AC
- Input Voltage Type: AC
- Rated Current (I n ): 80 A
- Rated Conditional Short-Circuit Current (I nc ): 25 kA
More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 81.9 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108469A1170 |
| Environmental Product Declaration - EPD | 9AKK108471A4712 |
| Technical | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Number of Poles | 3P |
| Switch Type | Off |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Electrical | |
| Rated Voltage (Ur) | 400 V |
| 12 V Minimum | |
| Rated Operational Voltage | 230 / 400 V AC |
| Input Voltage Type | AC |
| Rated Current (In) | 80 A |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Power Loss | at Rated Operating Conditions per Pole 2.6 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 3 |
| Material Compliance | |
| RoHS Declaration | 2CDK441011D0403 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240111 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP10 |
| Dimensions | |
| Width in Number of Modular Spacings | 3.0 |
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.29 kg |
| Built-In Depth (t2) | 70 mm |
| Ordering | |
| Package Level 1 Units | carton 3 piece |
| Package Level 1 Gross Weight | 0.915 kg |
| E-Number (Norway) | 1424329 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK441011D0403 |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC400002D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC001545 - Main switch for distribution board |
| ETIM 10 | EC001545 - Main switch for distribution board |
| UNSPSC | 39122233 |
| eClass | V11.0 : 27142301 |
| Object Classification Code | Q |
| Standards | IEC/EN 60947-3 |
| Certification Agency | EN |
| IEC | |
