View larger
Images are for illustrative purposes only. Please refer to data sheet for details

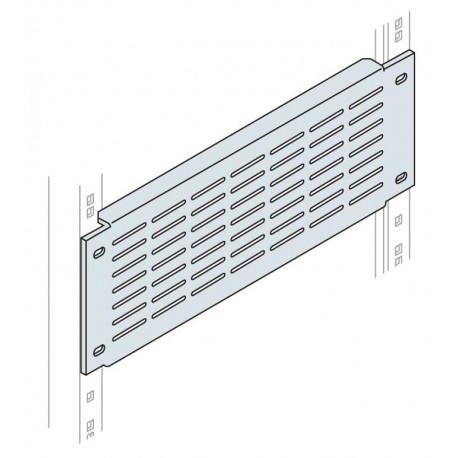

IS2-EH1991 EH1991 ABB VENTILATED PANEL 1HE
IS2-EH1991
EH1991
ABB
1 Pcs.
VENTILATED PANEL 1HE
IS2 RAL7035 Aerated Panel, 19" Rack, 1HE
Control and Automation Board W 600 mm H 1400 mm D 300 mm
Automation > Mounting accessories (switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | 482.6 mm (19 inch) mounting set |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 13. 19" rack structure |
| Product Type | 5B5B30B350 |
| Options Provided | 6. Blind and aerated panel in steel sheet |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STC860065 |
| RoHS Date | 20140108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 486 mm |
| Product Net Height | 44.45 mm |
| Product Net Depth / Length | 12.7 mm |
| Product Net Weight | 0.530 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| 800 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.53 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.1 : 27182807 |
| Standards | See code for structure |
