IS2-EG1900K EG1900K ABB PART. RACK FRAME FIX 18HE
IS2-EG1900K
EG1900K
ABB
1 Pcs.
Automation > Mounting accessories (switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

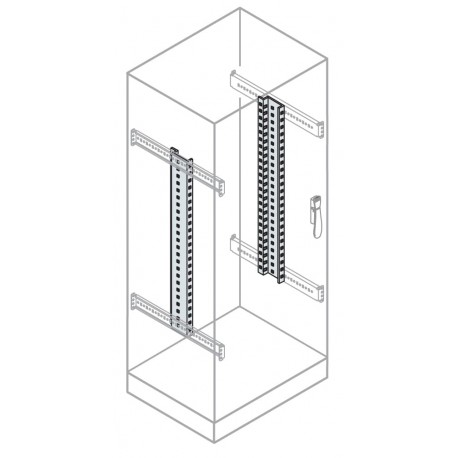

The IS2-EG1900K ABB rack frame is a specialized 19-inch mounting structure engineered to support standard electronic equipment, patch panels, and automation hardware inside industrial enclosures. Rack structures are widely deployed in industrial control environments to organize modular instrumentation and networking gear safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Sub-Function 3: 482.6 mm (19 inch) mounting set
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Accessory Type: 13. 19" rack structure
- Product Type: 5B5B30B350
- Options Provided: 4. Partial cranked shaped uprights
- Material: Galvanized Steel sheet
- Product Net Width: 135 mm
- Product Net Height: 900 mm
- Product Net Depth / Length: 810 mm
- Product Net Weight: 2.4430 kg
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | 482.6 mm (19 inch) mounting set |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 13. 19" rack structure |
| Product Type | 5B5B30B350 |
| Options Provided | 4. Partial cranked shaped uprights |
| Remarks | ETIM |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STC860065 |
| RoHS Date | 20140108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 135 mm |
| Product Net Height | 900 mm |
| Product Net Depth / Length | 810 mm |
| Product Net Weight | 2.4430 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| 800 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 2.443 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.1 : 27182807 |
| Standards | See code for structure |
