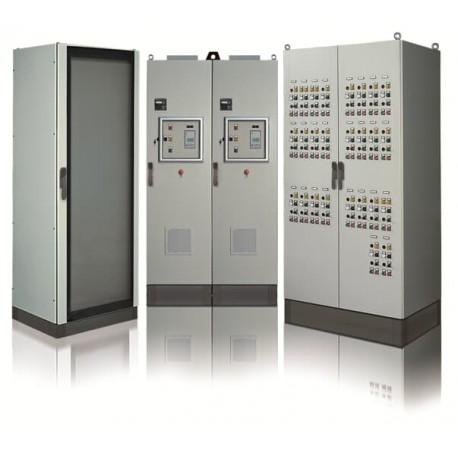

ABB IS2-EG1804K IS2-EG1804K EG1804K ABB SWING DEC. RACK H 1800 W 800 36 HE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IS2-EG1804K EG1804K ABB SWING DEC. RACK H 1800 W 800 36 HE

IS2-EG1804K

EG1804K

ABB

1 Pcs.

SWING DEC. RACK H 1800 W 800 36 HE IS2 Bas.gir.rack19"C,des. H1800,A800,36HE Control and Automation Board W 800 mm H 1800 mm D 300 mm

Automation > Mounting accessories (switchgear cabinet)
Automation and Control enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as a swing rack frame, the Abb IS2-EG1804K EG1804K ABB SWING DEC. RACK H 1800 W 800 36 HE facilitates convenient hinged access to 19-inch rack-mounted equipment inside automation cabinets. Swing frames are routinely deployed in industrial control systems to allow easy front-access maintenance and cabling for network switches, controllers, and patch panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Sub-Function 3: 482.6 mm (19 inch) mounting set
  • Suitable For: Automation and Control Enclosures (System pro E control) - IS2
  • Suitable for Product Class: Automation and Control Enclosures (System pro E control)
  • Accessory Type: 13. 19" rack structure
  • Product Type: 5B5B30B350
  • Options Provided: 2. Swing rack frame with "C" shaped profile
  • Remarks: ETIM
  • Material: Galvanized Steel sheet
  • RoHS Declaration: 1STC860065
  • RoHS Date: 20140108
  • WEEE Category: Product Not in WEEE Scope
  • Environmental Information: 1STC804013D0209
  • Product Net Width: 800 mm
  • Product Net Height: 65 mm
  • Product Net Depth / Length: 1800 mm
  • Product Net Weight: 18.65 kg

More info

▲
Technical
Sub-Function 3482.6 mm (19 inch) mounting set
Suitable ForAutomation and Control Enclosures (System pro E control) - IS2
Suitable for Product ClassAutomation and Control Enclosures (System pro E control)
Accessory Type13. 19" rack structure
Product Type5B5B30B350
Options Provided2. Swing rack frame with "C" shaped profile
RemarksETIM
Design
MaterialGalvanized Steel sheet
Material Compliance
RoHS Declaration1STC860065
RoHS Date20140108
WEEE CategoryProduct Not in WEEE Scope
Environmental
Environmental Information1STC804013D0209
Dimensions
Product Net Width800 mm
Product Net Height65 mm
Product Net Depth / Length1800 mm
Product Net Weight18.65 kg
Reference Depth/Length300 mm
400 mm
500 mm
600 mm
800 mm
1000 mm
Reference Height1800 mm
Reference Width800 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight18.65 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860113
Installation
Instructions and Manuals1STM604121R0008
Mounting TypeKit
Pre assembled
Popular Downloads
Data Sheet, Technical Information1STC804013D0209
External Classifications and Standards
ETIM 9EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 10EC002625 - Mounting accessories (enclosure/cabinet)
eClassV11.1 : 27182807
StandardsSee code for structure

Product Datasheet
