IS2-EG1500K EG1500K ABB PART. RACK FRAME FIX 9HE
IS2-EG1500K
EG1500K
ABB
1 Pcs.
Automation > Mounting accessories (switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

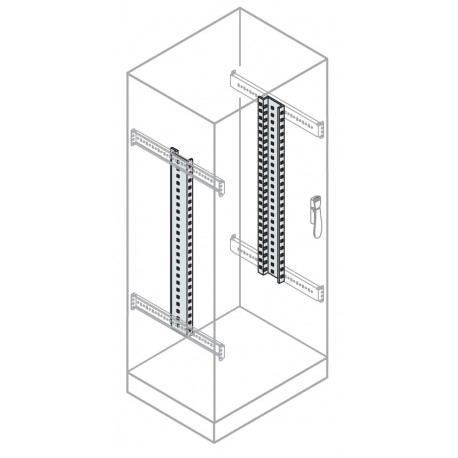

Designed for professional industrial automation setups, this Abb IS2-EG1500K rack frame fix integrates into control boards to establish a structured 19-inch mounting environment. Rack frames organize modular hardware securely within large freestanding enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Sub-Function 3: 482.6 mm (19 inch) mounting set
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Accessory Type: 13. 19" rack structure
- Product Type: 5B5B30B350
- Options Provided: 4. Partial cranked shaped uprights
- Remarks: ETIM
- Material: Galvanized Steel sheet
- RoHS Declaration: 1STC860065
- RoHS Date: 20140108
- WEEE Category: Product Not in WEEE Scope
- Environmental Information: 1STC804013D0209
- Product Net Width: 135 mm
- Product Net Height: 500 mm
- Product Net Depth / Length: 410 mm
- Product Net Weight: 1.3220 kg
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | 482.6 mm (19 inch) mounting set |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 13. 19" rack structure |
| Product Type | 5B5B30B350 |
| Options Provided | 4. Partial cranked shaped uprights |
| Remarks | ETIM |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STC860065 |
| RoHS Date | 20140108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 135 mm |
| Product Net Height | 500 mm |
| Product Net Depth / Length | 410 mm |
| Product Net Weight | 1.3220 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| 800 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.322 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.1 : 27182807 |
| Standards | See code for structure |
