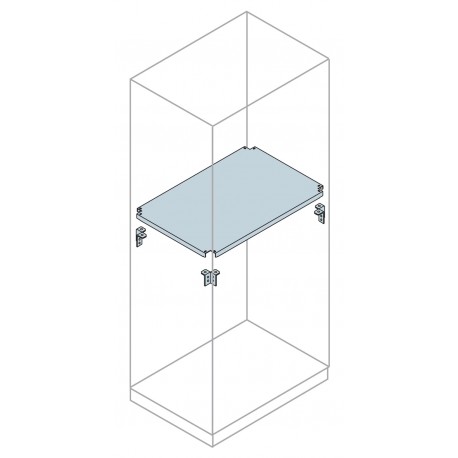

IS2-EE1081 EE1081 ABB HORIZONTAL PARTITION 1000X800MM(WXD)
IS2-EE1081
EE1081
ABB
1 Pcs.
HORIZONTAL PARTITION 1000X800MM(WXD)
IS2 Panel.divi.horiz.1000x1000
Control and Automation Board W 1000 mm H 1400 mm D 600 mm
Automation > Divider panel (switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB IS2-EE1081 is a horizontal partition panel built for automation and control enclosures. Partition panels separate internal cabinet spaces to safely organize electrical hardware and improve operational safety in industrial settings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Accessory Type: 9. Partition panels
- Product Type: 5B5B30B360
- Options Provided: 2. Horizontal partition panels
- Remarks: ETIM
- Material: Pickled steel sheet
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
- Environmental Information: 1STC804013D0209
- Product Net Width: 770 mm
- Product Net Height: 1000 mm
More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 9. Partition panels |
| Product Type | 5B5B30B360 |
| Options Provided | 2. Horizontal partition panels |
| Remarks | ETIM |
| Design | |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 770 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 800 mm |
| Product Net Weight | 9.70 kg |
| Reference Depth/Length | 600 mm |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 1000 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 9.900 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002525 - Divider panel (enclosure/cabinet) |
| ETIM 10 | EC002525 - Divider panel (enclosure/cabinet) |
| eClass | V11.1 : 27182102 |
| Object Classification Code | U |
| Standards | See code for structure |
