View larger
Images are for illustrative purposes only. Please refer to data sheet for details

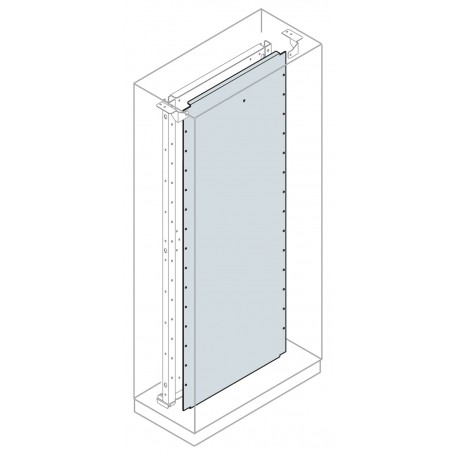

IS2-EA5380 EA5380 ABB OPPOSED BACK PLATE 2200X800MM HXW
IS2-EA5380
EA5380
ABB
1 Pcs.
OPPOSED BACK PLATE 2200X800MM HXW
IS2 Counter-mounted plate 2200x800
Control and Automation Board W 800 mm H 2200 mm D 300 mm
Automation > Mounting plate for distribution board
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | AM2 Cabinets, IS2 Enclosures for Automation |
| Accessory Type | 2. Mounting Plates |
| Product Type | 5B5B30B320 |
| Options Provided | 4. Opposed mounting plate |
| Remarks | ETIM |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STC860065 |
| RoHS Date | 20140108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 690 mm |
| Product Net Height | 2200 mm |
| Product Net Depth / Length | 2070 mm |
| Product Net Weight | 27.936 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 2200 mm |
| Reference Width | 800 mm |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 27.936 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604118R0003 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| eClass | V11.1 : 27400639 |
| Standards | See code for structure |
