View larger

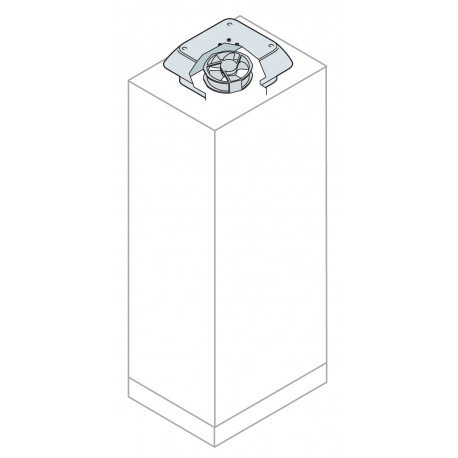

Images are for illustrative purposes only. Please refer to data sheet for details
EN0484K ABB IS2 Camp.vent.forzada IP54,115V, RAL7035
EN0484K
54115
ABB
1 Pcs.
IS2 Camp.vent.forzada IP54,115V, RAL7035
IS2 Forced Vent IP54,115V, RAL7035
Main Distribution Board W 400 mm H 1400 mm D 300 mm
Automation > Ventilator (switchgear cabinet)
TURATI air conditioning
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Sub-Function | Number of fan: 1 |
| Sub-Function 2 | 420/490 m³/h |
| Sub-Function 3 | Roof |
| Sub-Function 4 | 70/83 W |
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Nominal AC Voltage of the System (Uo) | 115 V |
| Sound dB (A) | 68...71 dB(A) |
| Accessory Type | 17. Temperature management |
| Product Type | 5P5P80P8090 |
| Options Provided | 9. IP54 Forced ventilation hood |
| Remarks | ETIM |
| Electrical | |
| Input Voltage Type | AC |
| Design | |
| Material | Epoxy painted Type of material: steel casing |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP54 |
| Environmental Information | 1STC804013D0209 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 324 mm |
| Product Net Depth / Length | 94 mm |
| Product Net Weight | 2.1 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 400 mm |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| 1200 mm | |
| 1600 mm | |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 2.3 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000320 - Ventilator (enclosure/cabinet) |
| ETIM 10 | EC000320 - Ventilator (enclosure/cabinet) |
| eClass | V11.1 : 27180716 |
| Standards | See code for structure |
| Feature Name | Feature Value |
|---|---|
| Number of fans (EF000928) | 1 |
| Operating voltage AC 50 Hz (EF008206) | 115 V |
| Operating voltage AC 60 Hz (EF008207) | 115 V |
| Suitable for wall built-in (EF007536) | No |
| Built as slide-in ventilator (EF007126) | No |
| Air circulator (EF007516) | Yes |
| Roof ventilator (EF007099) | Yes |
| With filter (EF006013) | No |
| With protective cover (EF005500) | No |
| Volume flow, freeblowing (EF007173) | 490 m³/h |
| Rated power (EF007051) | 83 W |
| EMC-version (EF001062) | No |
| Degree of protection (IP) (EF005474) | IP54 |
| Degree of protection (NEMA) (EF011959) | Other |
| Mounting method (EF000003) | Screw mounting |
| Suitable for 19 inch rack mounting (EF000337) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 324 mm |
| Height (EF000040) | 324 mm |
| Depth (EF000049) | 94 mm |
