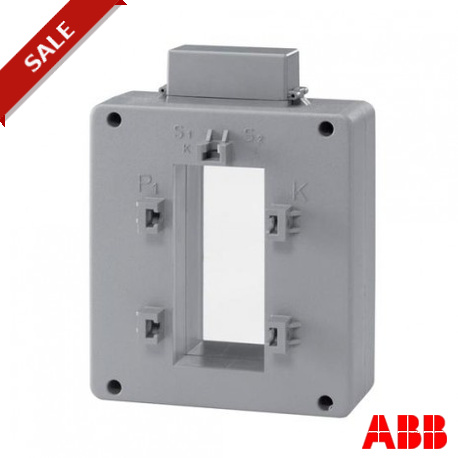

ABB CT12/500 CT12/500 2CSG721160R1101 ABB Iprim 500 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT12/500 2CSG721160R1101 ABB Iprim 500 A

CT12/500

2CSG721160R1101

ABB

1 Pcs.

Iprim 500 A

Automation > Current transformer
CT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Feed remote meters, gauges, and protection relays reliable scaled signals using the Abb CT12/500 current transformer. Industrial current transformers form the backbone of electrical distribution monitoring, stepping down heavy amperages for safe control room visibility.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting Type: Through primary
  • Cable Use: Cable and Horizontal bar
  • Cable Cross-Section: 2 x 50 mm
  • Rated Cross-Section: 125 x 50 mm
  • Rated Primary Current (I pn ): 500 A
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC445004K0201
  • Product Net Width: 0.070 m
  • Product Net Height: 0.196 m
  • Product Net Depth: 0.180 m
  • Product Net Weight: 1.600 kg
  • EAN: 8012542607700
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85363030
  • Package Level 1 Units: 1 piece
  • Package Level 1 Gross Weight: 0.700 kg

More info

▲

CT12/500 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • EAN:
    8012542607700
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363030

Dimensions

  • Product Net Width:
    0.070m
  • Product Net Height:
    0.196m
  • Product Net Depth:
    0.180m
  • Product Net Weight:
    1.600kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Gross Weight:
    0.700 kg
  • Package Level 2 Units:
    1 piece
  • Package Level 2 Gross Weight:
    0.700 kg

Technical

  • Mounting Type:
    Through primary
  • Cable Use:
    Cable and Horizontal bar
  • Cable Cross-Section:
    2 x 50 mm
  • Rated Cross-Section:
    125 x 50 mm
  • Rated Primary Current (Ipn):
    500 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
