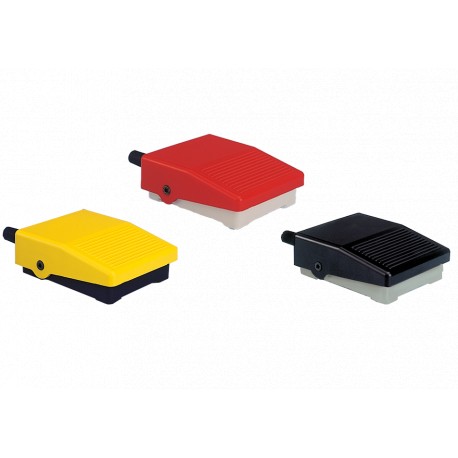

IPM2B 1SBV001107R1823 ABB IPM2B Foot Switch
IPM2B
1SBV001107R1823
ABB
1 Pcs.
Automation > Position switch modular
Limit FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A foot switch is a heavy-duty electrical control device operated by the operator's foot to start, stop, or cycle industrial machinery when hands-free operation is required. The Abb IPM2B model integrates robust snap action contacts within an IP40 enclosure, offering dependable switching for machine tools and conveyors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 5 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC141157C0202
- Instructions and Manuals: 1SBC141157C0202
- Product Net Width: 75 mm
- Product Net Height: 35 mm
- Product Net Depth / Length: 101 mm
- Product Net Weight: 0.101 kg
- Action Type of the Contact Element (acc. to IEC 60947-5-1): Snap Action Contacts
- Actuation Torque: acc. to IEC 60947-5-1 Min. 1.2 N·m
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 15 A
- Contact Element Form (acc. to IEC 60947-5-1): C
- Connecting Terminals (delivered in open position): M3 x 0.5 screw with Phillips head n░1 and washer
- Degree of Protection: acc. to IEC 60529 IP40
- Mechanical Durability: 10 million
- Number of Auxiliary Contacts NC: 1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 5 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Instructions and Manuals | 1SBC141157C0202 |
| Dimensions | |
| Product Net Width | 75 mm |
| Product Net Height | 35 mm |
| Product Net Depth / Length | 101 mm |
| Product Net Weight | 0.101 kg |
| Technical | |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Contacts |
| Actuation Torque | acc. to IEC 60947-5-1 Min. 1.2 N·m |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 15 A |
| Contact Element Form (acc. to IEC 60947-5-1) | C |
| Connecting Terminals (delivered in open position) | M3 x 0.5 screw with Phillips head n░1 and washer |
| Degree of Protection | acc. to IEC 60529 IP40 |
| Mechanical Durability | 10 million |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Rated Impulse Withstand Voltage (Uimp) | 1 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 250 V |
| Resistance Between Contacts | 30 ms |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... +70 °C |
| Storage -25 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SBD251109E1001 |
| RoHS Declaration | 1SBD251110E1000 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006537 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - CE | 1SBD250882U1000 |
| Declaration of Conformity - UKCA | 1SBD250885U1000 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 79 mm |
| Package Level 1 Depth / Length | 106 mm |
| Package Level 1 Height | 38 mm |
| Package Level 1 Gross Weight | 0.121 kg |
| Package Level 1 EAN | 3471522009067 |
| External Classifications and Standards | |
| ETIM 6 | EC001258 - Foot switch |
| ETIM 7 | EC001258 - Foot switch |
| ETIM 8 | EC001258 - Foot switch |
| eClass | V11.0 : 27371218 |
| UNSPSC | 39121500 |
| IDEA Granular Category Code (IGCC) | 5275 >> Foot switch |
