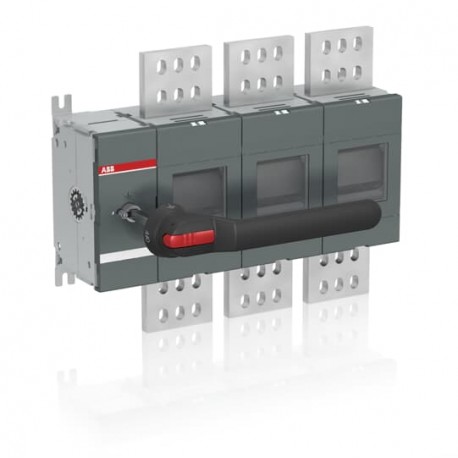

1SCA104972R1001 ABB Interruptor seccionador OT2500E03P
1SCA104972R1001
104972
ABB
1 Pcs.
Isolator switch OT2500E03P
OT2500E03P SWITCH-DISCONNECTOR
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB OT2500E03P disconnector switch is a massive current-interrupting device used in heavy manufacturing plants and electrical substations to ensure absolute isolation of primary busbars during maintenance windows.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301121M0201
- Environmental Information: 1SCC301268D0201
- Environmental Product Declaration - EPD: 1SCC301304D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301078M0205
- Mechanical Drawings: 1SCC301516F0001
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301121M0201 |
| Environmental Information | 1SCC301268D0201 |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301078M0205 |
| Mechanical Drawings | 1SCC301516F0001 |
| 1SCC301515F0001 | |
| OT2500E03.igs | |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 472.5 mm |
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 25.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 580 mm |
| Package Level 1 Depth / Length | 780 mm |
| Package Level 1 Height | 500 mm |
| Package Level 1 Gross Weight | 27.7 kg |
| Package Level 1 EAN | 6417019391113 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| (690 V) 2500 A | |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| (690 V) 2500 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301176D2702 |
| DNV GL Certificate | 1SCC301184D0203 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641585 |
