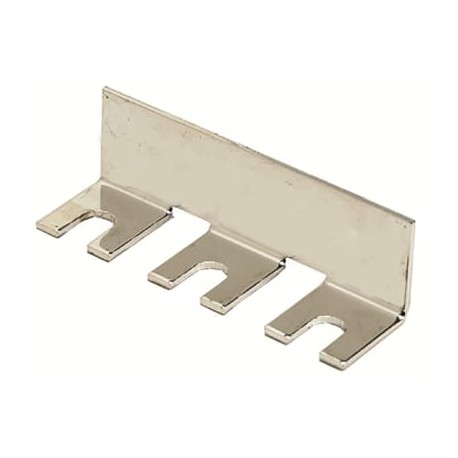

ABB 1SFN076103R1000 1SFN076103R1000 ABB INTERCONN. BAR LY750 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN076103R1000 ABB INTERCONN. BAR LY750

1SFN076103R1000

076103

ABB

1 Pcs.

INTERCONN. BAR#LY750 LY750 BRIDGE CONEX. 3P 1650A LY750 Connecting Strip

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB interconnecting bar LY750 (1SFN076103R1000) is engineered to establish secure electrical bridging connections between heavy-duty industrial block contactors, ensuring reliable power distribution across high-amperage switching configurations. This robust conductive bar features factory screw terminals designed for seamless integration with AF580 contactor units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380026-89
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 184 mm
  • Product Net Depth / Length: 55.5 mm
  • Product Net Height: 41 mm
  • Product Net Weight: 0.8 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Suitable for Product Class: Block Contactors
  • Product Name: Connecting Strip
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380026-89
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width184 mm
Product Net Depth / Length55.5 mm
Product Net Height41 mm
Product Net Weight0.8 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
Suitable for Product ClassBlock Contactors
Product NameConnecting Strip
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width184 mm
Package Level 1 Depth / Length41 mm
Package Level 1 Height55.5 mm
Package Level 1 Gross Weight0.83 kg
Package Level 1 EAN7320500222331
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121117
IDEA Granular Category Code (IGCC)4375 >> Buss bar
E-Number (Norway)4120445
E-Number (Sweden)4120445
