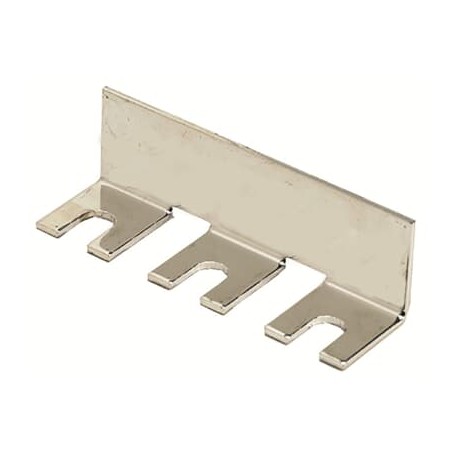

ABB 1SFN075103R1000 1SFN075103R1000 ABB INTERCONN. BAR LY300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN075103R1000 ABB INTERCONN. BAR LY300

1SFN075103R1000

075103

ABB

1 Pcs.

INTERCONN. BAR#LY300 LY300 CONEX BRIDGE. 3P 670A LY300 Connecting Strip

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as a connecting strip, the Abb 1SFN075103R1000 INTERCONN. BAR LY300 provides reliable electrical bridging for heavy-duty industrial block contactors. Interconnecting busbars and bars are essential in high-current motor control centers for distributing power across multiple switching devices efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380016-89
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 32 mm
  • Product Net Depth / Length: 38 mm
  • Product Net Height: 119.5 mm
  • Product Net Weight: 0.3 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF265
  • Suitable for Product Class: Block Contactors
  • Product Name: Connecting Strip
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380016-89
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width32 mm
Product Net Depth / Length38 mm
Product Net Height119.5 mm
Product Net Weight0.3 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF265
AF305
AF370
A210
A260
A300
AX260
AX300
AX370
Suitable for Product ClassBlock Contactors
Product NameConnecting Strip
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005321
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width32 mm
Package Level 1 Depth / Length119.5 mm
Package Level 1 Height38 mm
Package Level 1 Gross Weight0.33 kg
Package Level 1 EAN7320500204078
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121117
IDEA Granular Category Code (IGCC)4375 >> Buss bar
E-Number (Finland)3709283
E-Number (Norway)4120443
