View larger
Images are for illustrative purposes only. Please refer to data sheet for details

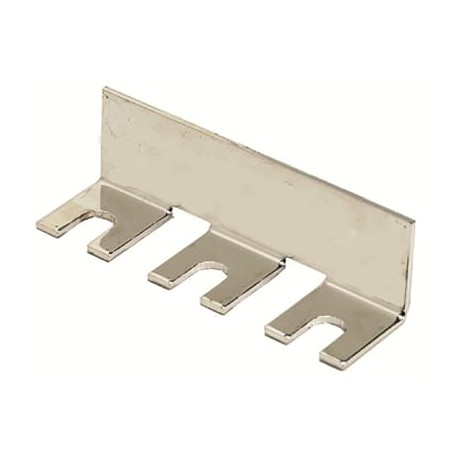

LY185 1SFN074703R1000 ABB INTERCONN. BAR LY185
LY185
1SFN074703R1000
ABB
1 Pcs.
INTERCONN. BAR#LY185
LY185 Connecting Strip
Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC380016-89 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 27 mm |
| Product Net Depth / Length | 28.7 mm |
| Product Net Height | 93 mm |
| Product Net Weight | 0.2 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF190 |
| AF205 | |
| A145 | |
| A185 | |
| AX185 | |
| AX205 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Connecting Strip |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT005321 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 27 mm |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 28.7 mm |
| Package Level 1 Gross Weight | 0.23 kg |
| Package Level 1 EAN | 7320500204061 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121117 |
| IDEA Granular Category Code (IGCC) | 4375 >> Buss bar |
| E-Number (Finland) | 3709281 |
| E-Number (Norway) | 4120442 |
