View larger
Images are for illustrative purposes only. Please refer to data sheet for details

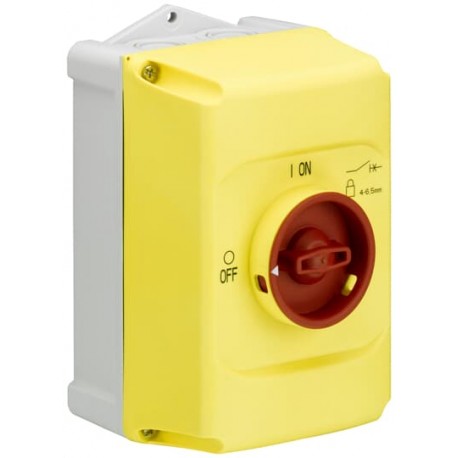

1SAM201911R1010 ABB IB132-G Enclosure
1SAM201911R1010
201911
ABB
1 Pcs.
IB132-G Enclosure
IB132-G BOX, P/MS116/32,IP65
IB132-G Enclosure, GY/BK, IP65 Standard version, 3 times lockable
Automation > Empty enclosure for switchgear
Mx116 and Mx132
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131028M6805 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM200441F0001 |
| Dimensions | |
| Product Net Width | 118 mm |
| Product Net Height | 194 mm |
| Product Net Depth / Length | 119 mm |
| Product Net Weight | 0.37 kg |
| Technical | |
| Degree of Protection | IP65 |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| UL 508 | |
| Remarks | For detailed specification see installation instruction |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +40 °C |
| Storage -50 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | cUL_E137861 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| UL Certificate | UL_E137861 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 129 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.435 kg |
| Package Level 1 EAN | 4013614421617 |
| External Classifications and Standards | |
| Object Classification Code | U |
| ETIM 9 | EC000712 - Empty enclosure for switchgear |
| ETIM 10 | EC000712 - Empty enclosure for switchgear |
| eClass | V11.0 : 27371301 |
| UNSPSC | 39121334 |
| IDEA Granular Category Code (IGCC) | 4492 >> Modular electrical enclosure |
| E-Number (Finland) | 3705861 |
| E-Number (Norway) | 4364200 |
| E-Number (Sweden) | 3112073 |
| Feature Name | Feature Value |
|---|---|
| Housing material (EF001596) | Plastic |
| Width (EF000008) | 118 mm |
| Height (EF000040) | 194 mm |
| Depth (EF000049) | 119 mm |
| With transparent cover (EF001094) | No |
| Suitable for emergency stop (EF001433) | No |
| Model (EF000010) | Surface mounting |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
