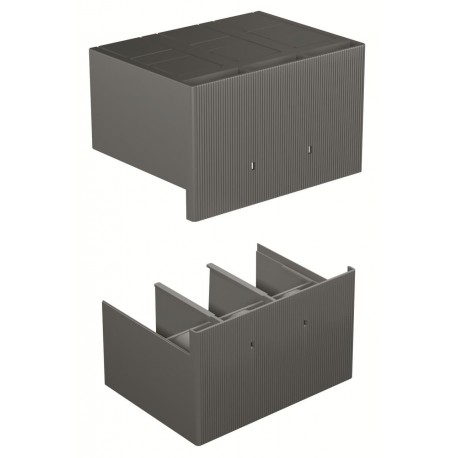

1SDA054961R1 ABB HTC T5 4p TERMINAL COVERS HIGH 2pcs
1SDA054961R1
054961
ABB
1 Pcs.
HTC T5 4p TERMINAL COVERS HIGH 2pcs
HTC HIGH TERMINAL COVERS 2x4P - T5
Automation > Cover cap for rail terminal bar
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB HTC T5 4p high terminal cover set protects four-pole circuit breaker terminals by enclosing exposed electrical connections. This prevents accidental contact and enhances safety standards in industrial electrical switchgear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT5HTC-4
- E-Number (Finland): 3655710
- E-Number (Norway): 4383654
- E-Number (Sweden): 3180949
- EAN: 8015644561000
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Weight: 0.6 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 122 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT5HTC-4 |
| E-Number (Finland) | 3655710 |
| E-Number (Norway) | 4383654 |
| E-Number (Sweden) | 3180949 |
| EAN | 8015644561000 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Weight | 0.6 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 122 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Depth / Length | 226 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 8015644561000 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0643 |
| External Classifications and Standards | |
| ETIM 9 | EC002268 - Cover cap for rail terminal bar |
| ETIM 10 | EC002268 - Cover cap for rail terminal bar |
| Object Classification Code | Q |
| UNSPSC | 39121410 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27400635 |
