ABB S802S-UCK100 S802S-UCK100 2CCS862001R1637 ABB High Performance Circuit Breaker S800S Tripping characteristic K Number of .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S802S-UCK100 2CCS862001R1637 ABB High Performance Circuit Breaker S800S Tripping characteristic K Number of ..

S802S-UCK100

2CCS862001R1637

ABB

1 Pcs.

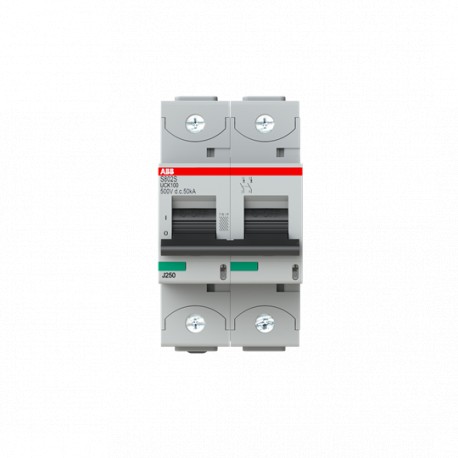

High Performance Circuit Breaker - S800S - Tripping characteristic K - Number of poles 2 - Rated operational current 100A - Rated operational voltage 250V DC Int.aut. S802S-UCK100 2p 100A UCK 50kA S802S-UCK100 High Performance MCB

Automation > Miniature circuit breaker (MCB)
S800S-UC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Type of Residual CurrentStandard Version
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(500 V DC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(500 V DC) 50 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles2
Number of Poles2P
Release TypeK
Actuator MarkingI / O
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm²
Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicUC-K
Rated Operational Voltageacc. to IEC 60947-2 500 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeDC
Rated Current (In)100 A
Rated Conditional Short-Circuit Current (Inc)(230 V) 50 kA
(400 V) 50 kA
Frequency (f)50...60 Hz
Rated Frequency (f)0 Hz
Power Loss16.6 W
at Rated Operating Conditions per Pole 8.3 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration2CCC005084D0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211214
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree2
Environmental Information2CCY413207D0203
Dimensions
Width in Number of Modular Spacings3
Product Net Width54 mm
Product Net Height95 mm
Product Net Depth / Length82.5 mm
Product Net Weight490 g
Built-In Depth (t2)82.5 mm
Dimension Diagram2CCC413003C0201
Engineering
EPLAN Data9AAC172534_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight510 g
Certificates and Declarations
CB Certificate2CCC413025D0202
CCC CertificateCQC2007010307251328
Declaration of Conformity - CE2CCC005084D0202
ESTI CertificateS800 GOST
UL Certificate9AKK107680A2286
VDE Certificate2CCC413040D0601
Installation
Instructions and Manuals2CCC413016M0008
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121603
eClassV11.0 : 27141901
IDEA Granular Category Code (IGCC)4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification CodeF
StandardsIEC/EN 60947-2

ETIM for 2CCS862001R1637 Circuit breakers and fuses (EC000042)
Feature Name Feature Value
Built-in depth (EF000218) 82.5 mm
Release characteristic (EF000889) Other
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 2
Rated current (EF000227) 100 A
Rated insulation voltage Ui (EF001366) 1500 V
Rated impulse withstand voltage Uimp (EF011980) 8 kV
Voltage type (EF000187) DC
Frequency (EF000416) 0 Hz
Current limiting class (EF002568) 3
Flush-mounted installation (EF007517) No
Concurrently switching neutral conductor (EF005997) No
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Additional equipment possible (EF008148) Yes
Width in number of modular spacings (EF002950) 3
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) -25 °C
Connectable conductor cross section multi-wired (EF007343) 0 mm²
Connectable conductor cross section solid-core (EF007337) 0 mm²
Explosion-proof (EF004663) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
