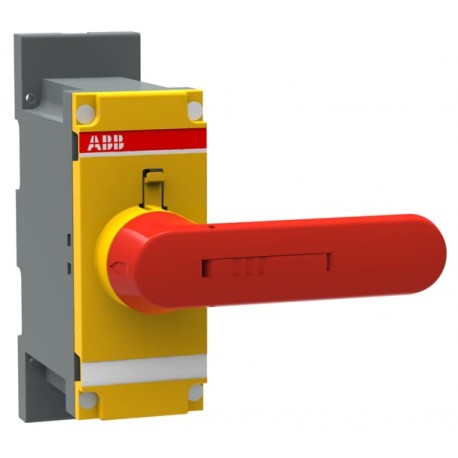

ABB 1SCA108703R1001 1SCA108703R1001 ABB Handle+Cover OSVY800DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108703R1001 ABB Handle+Cover OSVY800DK

1SCA108703R1001

108703

ABB

1 Pcs.

Handle+Cover OSVY800DK Direct control OSVY800DK OSVY800DK DIRECT MOUNT HANDLE

Automation > Accessories/spare parts for low-voltage switch technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb part number 1SCA108703R1001 is a Handle+Cover OSVY800DK engineered for high-performance safety switches and disconnectors. These assemblies enclose control shafts while delivering secure manual actuation and environmental protection for heavy-duty industrial switchgear enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC311013C0201
  • Instructions and Manuals: 1SCC311016M0210
  • Mechanical Drawings: OSV800DK-palikka.igs
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Estonia
  • Product Net Width: 250 mm
  • Product Net Height: 130 mm
  • Product Net Depth / Length: 170 mm
  • Product Net Weight: 1.1 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 250 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311016M0210
Mechanical DrawingsOSV800DK-palikka.igs
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginEstonia
Dimensions
Product Net Width250 mm
Product Net Height130 mm
Product Net Depth / Length170 mm
Product Net Weight1.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Depth / Length170 mm
Package Level 1 Height130 mm
Package Level 1 Gross Weight1.1 kg
Package Level 1 EAN6417019422749
Technical
Mounting TypeScrew mounting
Special FunctionsDK
Certificates and Declarations
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27371392
WEEE CategoryProduct Not in WEEE Scope
