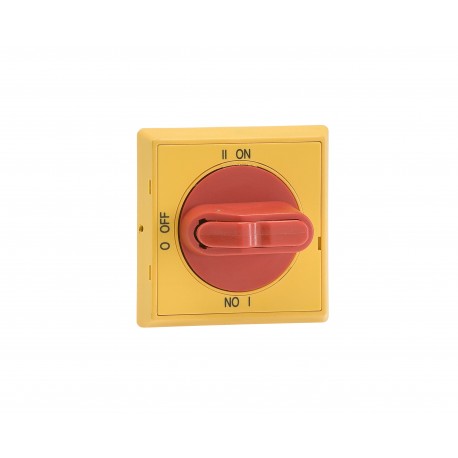

1SCA105301R1001 ABB Handle OHYS2AJE011
1SCA105301R1001
105301
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operated as a manual actuator, the 1SCA105301R1001 ABB Handle OHYS2AJE011 mounts onto industrial switch disconnectors to provide reliable on/off control for electrical panels. Handle assemblies allow technicians to safely isolate power circuits during maintenance procedures while ensuring compliance with enclosure sealing requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC390008M0018
- Degree of Protection: IP65
- Minimum Order Quantity: BG 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Lithuania
- Product Net Width: 66 mm
- Product Net Height: 66 mm
- Product Net Depth / Length: 34 mm
- Product Net Weight: 0.072 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 66 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC390008M0018 |
| Environmental | |
| Degree of Protection | IP65 |
| Ordering | |
| Minimum Order Quantity | BG 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 66 mm |
| 2.6 in | |
| Product Net Height | 66 mm |
| 2.6 in | |
| Product Net Depth / Length | 34 mm |
| 1.34 in | |
| Product Net Weight | 0.072 kg |
| 0.16 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 66 mm |
| Package Level 1 Depth / Length | 35 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Gross Weight | 8.8 kg |
| Package Level 1 EAN | 6417019412306 |
| Technical | |
| Color | Red-Yellow |
| Degree of Protection | IP65 |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Special Functions | E011 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3600144 |
