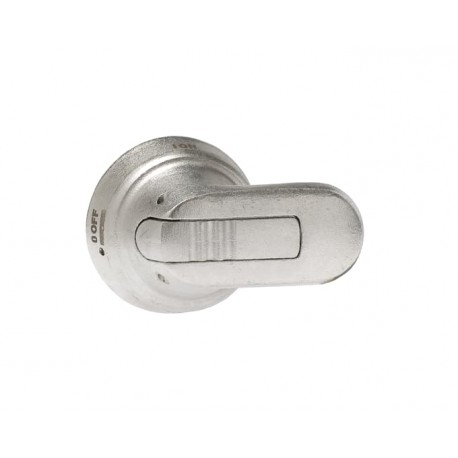

ABB 1SCA022739R1150 1SCA022739R1150 ABB Handle OHM125L12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022739R1150 ABB Handle OHM125L12

1SCA022739R1150

022739

ABB

1 Pcs.

Handle OHM125L12 Stainless steel control. OHM125L12 OHM125L12 HANDLE

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SCA022739R1150 handle OHM125L12 functions as a robust door-coupling rotary handle utilized on industrial control enclosures and switchgear panels. Technicians rely on these mechanisms to manually operate internal load break switches or disconnects while maintaining external panel sealing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390055M0004
  • Degree of Protection: IP66
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: China
  • Product Net Width: 158 mm
  • Product Net Height: 45 mm
  • Product Net Depth / Length: 66 mm
  • Product Net Weight: 0.8 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 125 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390055M0004
Environmental
Degree of ProtectionIP66
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginChina
Dimensions
Product Net Width158 mm
Product Net Height45 mm
Product Net Depth / Length66 mm
Product Net Weight0.8 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width125 mm
Package Level 1 Depth / Length90 mm
Package Level 1 Height69 mm
Package Level 1 Gross Weight0.81 kg
Package Level 1 EAN6417019308616
Technical
ColorMetal
Degree of ProtectionIP66
Handle ColorStainless Steel
Handle Length125 mm
Handle TypePistol
Special FunctionsL12
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3602144
E-Number (Norway)4337877

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
