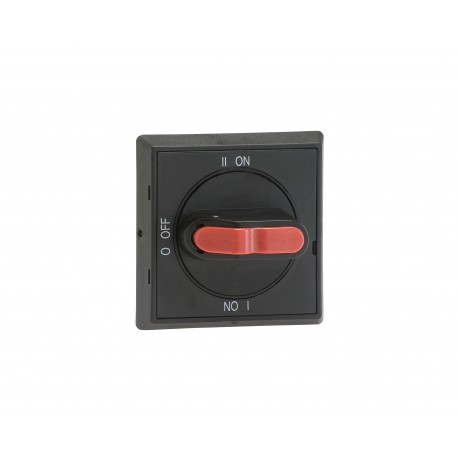

ABB 1SCA105220R1001 1SCA105220R1001 ABB Handle OHBS2AJE011 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105220R1001 ABB Handle OHBS2AJE011

1SCA105220R1001

105220

ABB

1 Pcs.

Handle OHBS2AJE011 Command OHBS2AJE011 OHBS2AJE011 Handle

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured as an Abb 1SCA105220R1001 ABB Handle OHBS2AJE011, this hardware piece provides reliable manual control for industrial switch disconnectors and safety switches. Control handles are installed externally on electrical enclosures to give operators direct, protected physical leverage over internal power distribution components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390008M0018
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 66 mm
  • Product Net Height: 66 mm
  • Product Net Depth / Length: 34 mm
  • Product Net Weight: 0.08 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 66 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390008M0018
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width66 mm
2.6 in
Product Net Height66 mm
2.6 in
Product Net Depth / Length34 mm
1.34 in
Product Net Weight0.08 kg
0.18 lb
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width66 mm
Package Level 1 Depth / Length66 mm
Package Level 1 Height34 mm
Package Level 1 Gross Weight0.098 kg
Package Level 1 EAN6417019411453
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle TypeSelector
Special FunctionsE011
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122221
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661907
E-Number (Norway)4363585
