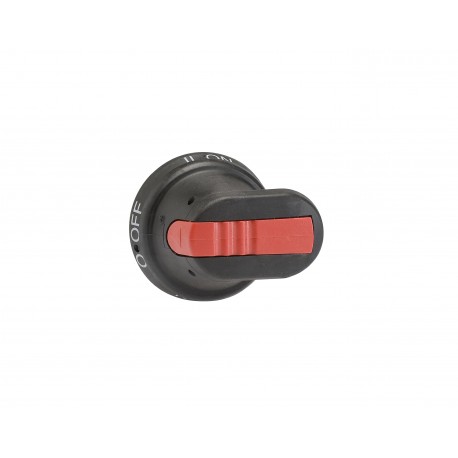

ABB 1SCA022594R7110 1SCA022594R7110 ABB Handle OHB45J6E011 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022594R7110 ABB Handle OHB45J6E011

1SCA022594R7110

022594

ABB

1 Pcs.

Handle OHB45J6E011 Remote OHB45J6E011 OHB45J6E011 Handle

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by ABB, the OHB45J6E011 handle (part number 1SCA022594R7110) functions as a robust rotary operator for industrial switch disconnectors and control enclosures.

Operator handles of this class are standard additions to electrical cabinets, offering dependable manual actuation and reliable sealing performance in harsh operational environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC390008M0018
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Estonia
  • Product Net Width: 78 mm
  • Product Net Height: 66 mm
  • Product Net Depth / Length: 45 mm
  • Product Net Weight: 0.074 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 50 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC390008M0018
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginEstonia
Dimensions
Product Net Width78 mm
3.07 in
Product Net Height66 mm
2.6 in
Product Net Depth / Length45 mm
1.77 in
Product Net Weight0.074 kg
0.16 lb
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width50 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height70 mm
Package Level 1 Gross Weight0.074 kg
Package Level 1 EAN6417019193939
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle Length45 mm
Handle TypePistol
Special FunctionsJ6E011
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122221
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3600106
