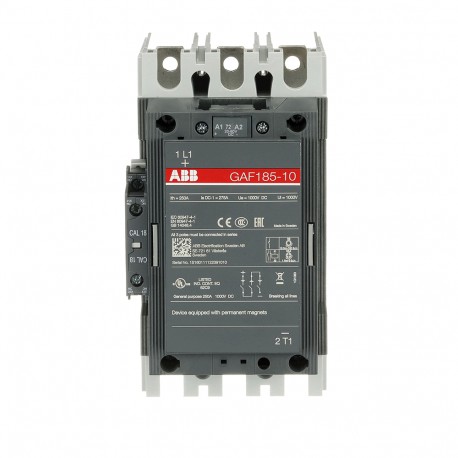

1SFL497025R7211 ABB GAF185-10-11 20-60V DC Contactor

1SFL497025R7211

497025

ABB

1 Pcs.

GAF185-10-11 20-60V DC Contactor GAF185-10-11 CONT. 1P 1000VDC 20-60Vdc

Automation > Power contactor, DC switching
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
EPLAN Data9AAC171150_EPLAN
Data Sheet, Technical Information1SBC100192C0206
Instructions and Manuals1SFC101046M0201
Dimensions
Product Net Width111.5 mm
Product Net Depth / Length160 mm
Product Net Height196 mm
Product Net Weight3 kg
Dimension Diagram53540923-7
Technical
Number of Main Contacts NO1
Number of Main Contacts NC0
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Number of Poles1P
Rated Operational VoltageMain Circuit 1000 V
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 275 A
Rated Operational Current DC-1 (Ie)(1000 V) 3 Poles in Series, 40 °C 275 A
(1000 V) 3 Poles in Series, 55 °C 250 A
(1000 V) 3 Poles in Series, 70 °C 180 A
(220 V) 3 Poles in Series, 40 °C 275 A
(220 V) 3 Poles in Series, 55 °C 250 A
(220 V) 3 Poles in Series, 70 °C 180 A
(400 V) 3 Poles in Series, 40 °C 275 A
(400 V) 3 Poles in Series, 55 °C 250 A
(400 V) 3 Poles in Series, 70 °C 180 A
(600 V) 3 Poles in Series, 40 °C 275 A
(600 V) 3 Poles in Series, 55 °C 250 A
(600 V) 3 Poles in Series, 70 °C 180 A
Rated Insulation Voltage (Ui)acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Mechanical Durability5 million
Maximum Mechanical Switching Frequency300 cycles per hour
Coil Operating Limits(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)DC Operation 20 ... 60 V
Coil ConsumptionHolding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 2 W
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 430 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 430 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 500 V·A
Power Lossat Rated Operating Conditions per Pole 16 W
Connecting Capacity Main CircuitBar 24 mm²
Rigid Al-Cable 25 ... 150 mm²
Rigid Cu-Cable 6 ... 185 mm²
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 2 x 1 .... 4 mm²
Connecting CapacityBar 24 mm²
Rigid Al-Cable 25 ... 150 mm²
Rigid Cu-Cable 6 ... 185 mm²
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening TorqueMain Circuit 18 N·m
Terminal TypeMain Circuit: Bars
Product NameBlock Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 1000 V
General Use Rating UL/CSA(1000 V DC) 250 A
(440 V DC) 250 A
(600 V DC) 250 A
Environmental
Ambient Air TemperatureOperation -40 ... 70 °C
Storage -40 ... +70 °C
Maximum Operating Altitude PermissibleWithout Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Certificates and Declarations
CB CertificateSEMKO_SE-66709
CQC CertificateCQC2012010304547007
cUL CertificateUL_20100927-E73397
Declaration of Conformity - CCC2020980304001543
Declaration of Conformity - CE2CMT003517
Declaration of Conformity - UKCA2CMT2020-006118
EAC Certificate9AKK107046A8618
UL Listing CardUL_E73397
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width178 mm
Package Level 1 Depth / Length232 mm
Package Level 1 Height167 mm
Package Level 1 Gross Weight3.6 kg
Package Level 1 EAN7320500383766
External Classifications and Standards
Object Classification CodeQ
ETIM 7EC002552 - Power contactor, DC switching
ETIM 8EC002552 - Power contactor, DC switching
ETIM 9EC002552 - Power contactor, DC switching
eClassV11.0 : 27371018
UNSPSC39121529
IDEA Granular Category Code (IGCC)4763 >> Power contactor, DC switching

Product Datasheet
