View larger
Images are for illustrative purposes only. Please refer to data sheet for details

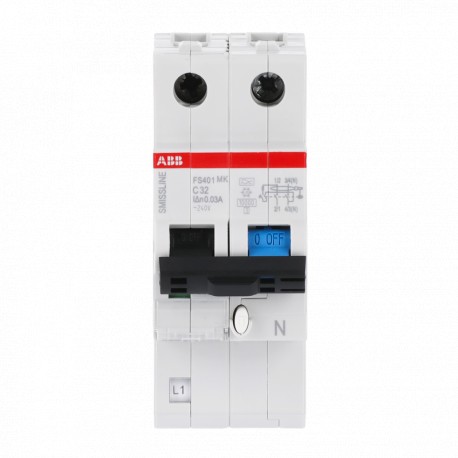

2CCL562310E1324 ABB FS401MK-C32/0.03
2CCL562310E1324
562310
ABB
1 Pcs.
FS401MK-C32/0.03
SMISSLINE-I.Com FS401MK C 32A 30mA
Automation > Earth leakage circuit breaker
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| EcoSolutions Profile | 9AKK108470A5866 |
| Technical | |
| Type of Residual Current | Type F |
| Dielectric Test Voltage | 2500 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 15 kA |
| Rated Residual Breaking Capacity (IΔm) | 10000 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 7.5 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 10 kA |
| Maximum Surge Current | 3 kA |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 10000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous (APR High Immunity) |
| Position of Neutral Terminals | Right |
| Tightening Torque | 2.8 N·m |
| Actuator Type | Toggle |
| Earthing Switch Type | Short-Time Delayed |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Accessories Available | Yes |
| Connecting Capacity | Stranded 0.75 ... 35 mm² |
| Flexible 0.75 ... 25 mm² | |
| Rated Cross-Section | 1 - Solid-Core 0.75 … 35 mm² |
| 4 - Multi-Wired 0.75 … 10 mm² | |
| Electrical | |
| Short-Circuit Current Rating (SCCR) | 0.03 A |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 240 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 32 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 10 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | 5.6 W |
| Overvoltage Category | III |
| Design | |
| Housing Material | Insulation Group I, RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 2CCC413008D0206_RoHS |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 20170426 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 … 60 °C |
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Resistance to Vibrations | 1 mm 2 … 13.2 Hz |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 91 mm |
| Product Net Depth / Length | 78 mm |
| Product Net Weight | 200 g |
| Built-In Depth (t2) | 91 mm |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAC128469_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 239 g |
| E-Number (Norway) | 1683692 |
| E-Number (Switzerland) | 809152137 |
| Replacement Product ID (NEW) | 2CCG001703R0001 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CCC451036D0201 |
| Installation | |
| Instructions and Manuals | 9AKK107680A1664 |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC000905 - Earth leakage circuit breaker |
| eClass | V11.0 : 27142207 |
| Object Classification Code | FB |
| Standards | IEC 61009-1 |
| EN 61009-1 | |
| DIN EN 61009-1 | |
| EN 61009-2-1 | |
| DIN EN 61009-2-1 | |
