View larger
Images are for illustrative purposes only. Please refer to data sheet for details

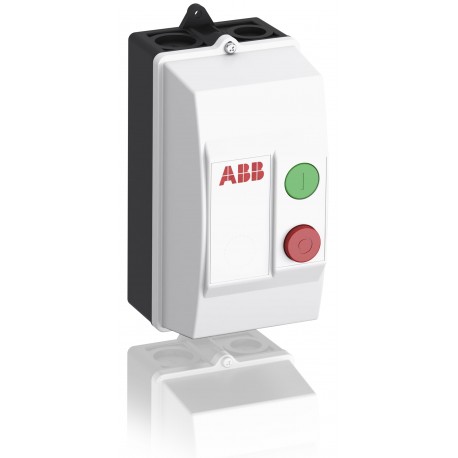

1SBN101337R1000 ABB FR16AF-12 FR16AF-12
1SBN101337R1000
101337
ABB
1 Pcs.
FR16AF-12 FR16AF-12
FR16AF-12 EMPTY BOXxDIRECT STARTER
FR16AF-12 Enclosure
Automation > Enclosure for control circuit devices
Boxed starters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Main Type | Accessories for Enclosed Motor Starters |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101048M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 107 mm |
| Product Net Depth / Length | 131 mm |
| Product Net Height | 230 mm |
| Product Net Weight | 0.53 kg |
| Technical | |
| Housing Material | ABS |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| TF42 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250009U1000 |
| Declaration of Conformity - UKCA | 1SBD250040U1000 |
| UL Certificate | UL_20150729-E312527-16-1 |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 0.53 kg |
| Package Level 1 EAN | 3471522149909 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371205 |
| E-Number (Finland) | 3708077 |
| ETIM 6 | EC000200 - Enclosure for control circuit devices |
| ETIM 7 | EC000200 - Enclosure for control circuit devices |
| ETIM 8 | EC000200 - Enclosure for control circuit devices |
| ETIM 9 | EC000200 - Enclosure for control circuit devices |
| UNSPSC | 39121300 |
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 2 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Acrylonitrile butadiene styrene (ABS) |
| Diameter openings (EF000243) | 20 mm |
| Colour housing cover (EF001373) | Other |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 107 mm |
| Height (EF000040) | 230 mm |
| Depth (EF000049) | 131 mm |
