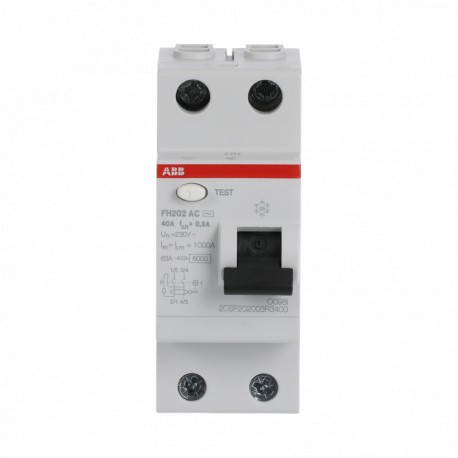

ABB 2CSF202003R3630 2CSF202003R3630 ABB FH202 AC-63/0,3 Residual Current Dev. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSF202003R3630 ABB FH202 AC-63/0,3 Residual Current Dev.

2CSF202003R3630

202003

ABB

1 Pcs.

FH202 AC-63/0,3 - Residual Current Dev. Int.dif.FH202AC-63/0.3 2p 63A AC 300mA Residual Current Circuit Breaker FH200 - 2P - 300 mA - 63 A - Type AC

Automation > Residual current circuit breaker (RCCB)
FH200

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108470A4863
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 72.34 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
Sustainable Material Content in Packaging (wt. %)Recycled Paper - 0 %
Recycled Cardboard - 19.59 %
Recycled Cardboard - 78.37 %
Extended Product LifetimeProduct Durability
Offered with Takeback ServicesTake Back for Recycling
End Of Life Disassembling Instructions9AKK108469A2269
Environmental Product Declaration - EPD9AKK108469A6622
Technical
Type of Residual CurrentType AC
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Maximum Surge Current0.25 kA
Leakage Current TypeAC
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Poles2P
Number of Modular Spacings per DIN Rail2
Operating CharacteristicInstantaneous
Options ProvidedNone
Accessories AvailableNo
Rated Cross-Section4 - Multi-Wired 10 ... 25 mm²
1 - Solid-Core 25 ... 25 mm²
Electrical
Short-Circuit Current Rating (SCCR)0.3 A
Rated Voltage (Ur)230 V
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)63 A
Rated Residual Current300 mA
Rated Conditional Short-Circuit Current (Inc)6 kA
Rated Frequency (f)50 Hz
Power LossTotal 6.4 W
Design
RAL NumberRAL 7035 - Light Grey
ColorGrey
Number of Modules2
Material Compliance
RoHS Declaration9AKK106713A5603
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211115
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP719d39e9-c62c-4c41-a6dc-53de2a11e8ea Italy
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -5 ... 40 °C
Degree of ProtectionIP2X
Pollution Degree2
Environmental InformationRefer to RoHS
Dimensions
Width in Number of Modular Spacings2
Product Net Width35 mm
Product Net Height85 mm
Product Net Depth / Length69 mm
Product Net Weight200 g
Built-In Depth (t2)69 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.236 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5603
Installation
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information2CSC400030D0202
External Classifications and Standards
ETIM 9EC000003 - Residual current circuit breaker (RCCB)
ETIM 10EC000003 - Residual current circuit breaker (RCCB)
eClassV11.0 : 27142201
Object Classification CodeF
StandardsIEC/EN 61008

ETIM for 2CSF202003R3630 Circuit breakers and fuses (EC000003)
Feature Name Feature Value
Number of poles (EF001391) 2
Rated voltage (EF000228) 230 V
Rated current (EF000227) 63 A
Rated insulation voltage Ui (EF001366) 500 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Mounting method (EF000003) DIN rail
Leakage current type (EF002560) AC
Selective protection (EF002561) No
Short-time delayed tripping (EF003604) No
Short-circuit breaking capacity (Icw) (EF002562) 1 kA
Surge current capacity (EF002564) 0.25 kA
With interlocking device (EF007385) Yes
Frequency (EF005455) 50 Hz
Additional equipment possible (EF008148) No
Degree of protection (IP) (EF005474) IP2X
Width in number of modular spacings (EF002950) 2
Built-in depth (EF000218) 69 mm
Ambient temperature during operating (EF007515) -5 °C
Connectable conductor cross section multi-wired (EF007343) 10 mm²
Connectable conductor cross section solid-core (EF007337) 25 mm²
