View larger
Images are for illustrative purposes only. Please refer to data sheet for details

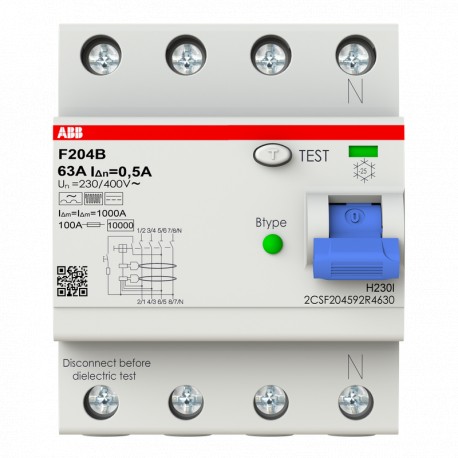

2CSF204592R4630 ABB F204 B-63/0,5 Residual Current Dev.
2CSF204592R4630
204592
ABB
1 Pcs.
F204 B-63/0,5 Residual Current Dev.
Int.diff.F204B-63/0.5 4p 63 B 500mA
F200 Differential Switch - 4P - 500 mA - 63 A - Type B
Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Ordering
- EAN:
- 8012542347637
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
Dimensions
- Product Net Width:
- 0.072m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.073 m
- Package Level 1 Height:
- 0.078 m
- Package Level 1 Length:
- 0.09 m
- Package Level 1 Gross Weight:
- 0.525 kg
- Package Level 1 EAN:
- 8012542347637
Technical
- Standards:
- EN 61008
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- B type
- Rated Residual Current:
- 500 mA
- Rated Current (In):
- 63 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 4.5 W
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC423009D2701
- RoHS Information:
- 2CSC423006K2701
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000003 - Residual current circuit breaker (RCCB)
- ETIM 5:
- EC000003 - Residual current circuit breaker (RCCB)
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Rated voltage (EF000228) | 400 V |
| Rated current (EF000227) | 63 A |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Mounting method (EF000003) | DIN rail |
| Leakage current type (EF002560) | B |
| Selective protection (EF002561) | No |
| Short-time delayed tripping (EF003604) | Yes |
| Surge current capacity (EF002564) | 3 kA |
| With interlocking device (EF007385) | Yes |
| Frequency (EF005455) | Other |
| Additional equipment possible (EF008148) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 4 |
| Built-in depth (EF000218) | 69 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
| Pollution degree (EF002570) | 2 |
| Connectable conductor cross section multi-wired (EF007343) | 0 mm² |
| Connectable conductor cross section solid-core (EF007337) | 25 mm² |
| Explosion-proof (EF004663) | No |
