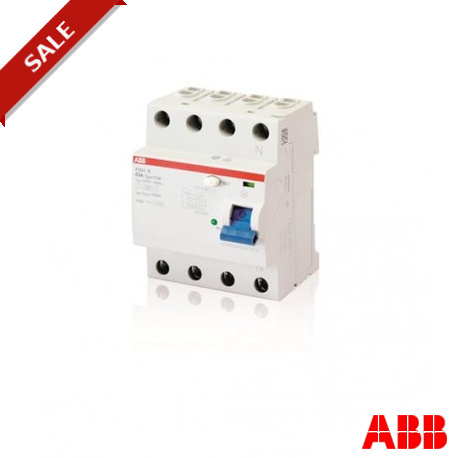

ABB F204B-63/0,03 F204B-63/0,03 2CSF204592R1630 ABB F204 B-63/0,03 Residual Current Dev. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F204B-63/0,03 2CSF204592R1630 ABB F204 B-63/0,03 Residual Current Dev.

F204B-63/0,03

2CSF204592R1630

ABB

1 Pcs.

F204 B-63/0,03 Residual Current Dev. Int.dif.F204B-63/0.03 4p 63 B 30mA

Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect personnel and sensitive circuitry from electrical hazards with the Abb F204B-63/0,03 residual current device. Designed for integration into industrial distribution panels, this unit monitors leakage currents to safely trip circuits and prevent hazardous earth faults in complex setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standards: EN 61008
  • Operating Characteristic: Instantaneous
  • Type of Residual Current: B type
  • Rated Residual Current: 30 mA
  • Rated Current (I n ): 63 A
  • Number of Poles: 4
  • Position of Neutral Terminals: Right
  • Power Loss: at Rated Operating Conditions per Pole 4.5 W
  • RoHS Information: 2CSC423006K2701
  • Product Net Width: 0.072 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.069 m
  • Product Net Weight: 0.500 kg
  • EAN: 8012542348030
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85363030

More info

▲

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Ordering

  • EAN:
    8012542348030
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363030

Dimensions

  • Product Net Width:
    0.072m
  • Product Net Height:
    0.085m
  • Product Net Depth:
    0.069m
  • Product Net Weight:
    0.500kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.073 m
  • Package Level 1 Height:
    0.078 m
  • Package Level 1 Length:
    0.09 m
  • Package Level 1 Gross Weight:
    0.525 kg
  • Package Level 1 EAN:
    8012542348030

Technical

  • Standards:
    EN 61008
  • Operating Characteristic:
    Instantaneous
  • Type of Residual Current:
    B type
  • Rated Residual Current:
    30 mA
  • Rated Current (In):
    63 A
  • Number of Poles:
    4
  • Position of Neutral Terminals:
    Right
  • Power Loss:
    at Rated Operating Conditions per Pole 4.5 W

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC000003 - Residual current circuit breaker (RCCB)
  • ETIM 5:
    EC000003 - Residual current circuit breaker (RCCB)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
