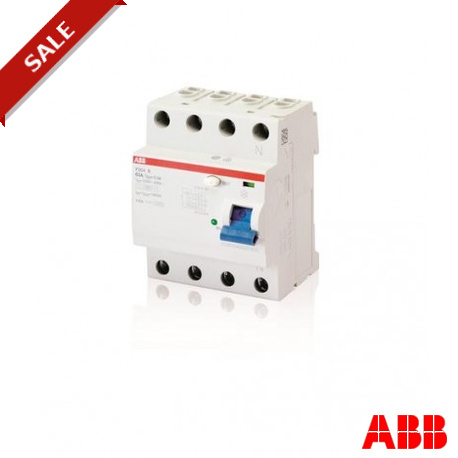

F204B-40/0,3 2CSF204592R3400 ABB F204 B-40/0,3 Residual Current Dev.
F204B-40/0,3
2CSF204592R3400
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Prevent electrical hazards in demanding environments by utilizing the Abb F204B-40/0,3 residual current device. Protective units of this class are deployed upstream in electrical grids to detect leakage currents and prevent thermal overload or fire risks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standards: EN 61008
- Operating Characteristic: Instantaneous
- Type of Residual Current: B type
- Rated Residual Current: 300 mA
- Rated Current (I n ): 40 A
- Number of Poles: 4
- Position of Neutral Terminals: Right
- Power Loss: at Rated Operating Conditions per Pole 1.81 W
- RoHS Information: 2CSC423006K2701
- Product Net Width: 0.072 m
- Product Net Height: 0.085 m
- Product Net Depth: 0.069 m
- Product Net Weight: 0.500 kg
- EAN: 8012542358138
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
More info
▲The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Ordering
- EAN:
- 8012542358138
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
Dimensions
- Product Net Width:
- 0.072m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.073 m
- Package Level 1 Height:
- 0.078 m
- Package Level 1 Length:
- 0.09 m
- Package Level 1 Gross Weight:
- 0.525 kg
- Package Level 1 EAN:
- 8012542358138
Technical
- Standards:
- EN 61008
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- B type
- Rated Residual Current:
- 300 mA
- Rated Current (In):
- 40 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 1.81 W
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC423009D2701
- RoHS Information:
- 2CSC423006K2701
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000003 - Residual current circuit breaker (RCCB)
- ETIM 5:
- EC000003 - Residual current circuit breaker (RCCB)
