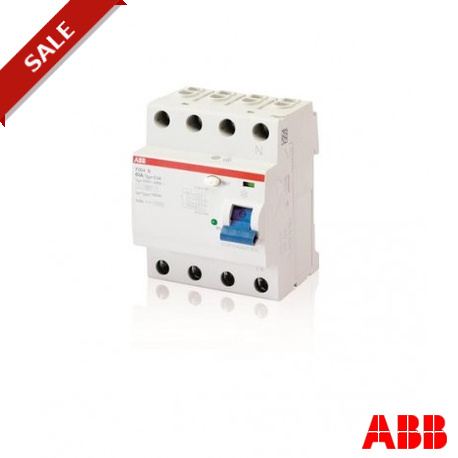

F204B-40/0,03 2CSF204592R1400 ABB F204 B-40/0,03 Residual Current Dev.
F204B-40/0,03
2CSF204592R1400
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This residual current device, specifically the Abb F204B-40/0,03, detects AC and pulsating DC earth leakage currents to protect operators and prevent electrical fires. It is widely applied in complex power distribution networks containing frequency converters and other sensitive electronics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standards: EN 61008
- Operating Characteristic: Instantaneous
- Type of Residual Current: B type
- Rated Residual Current: 30 mA
- Rated Current (I n ): 40 A
- Number of Poles: 4
- Position of Neutral Terminals: Right
- Power Loss: at Rated Operating Conditions per Pole 1.81 W
- RoHS Information: 2CSC423006K2701
- Product Net Width: 0.072 m
- Product Net Height: 0.085 m
- Product Net Depth: 0.069 m
- Product Net Weight: 0.500 kg
- EAN: 8012542358336
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
More info
▲The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Ordering
- EAN:
- 8012542358336
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
Dimensions
- Product Net Width:
- 0.072m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.073 m
- Package Level 1 Height:
- 0.078 m
- Package Level 1 Length:
- 0.09 m
- Package Level 1 Gross Weight:
- 0.525 kg
- Package Level 1 EAN:
- 8012542358336
Technical
- Standards:
- EN 61008
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- B type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 40 A
- Number of Poles:
- 4
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 1.81 W
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC423009D2701
- RoHS Information:
- 2CSC423006K2701
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000003 - Residual current circuit breaker (RCCB)
- ETIM 5:
- EC000003 - Residual current circuit breaker (RCCB)
