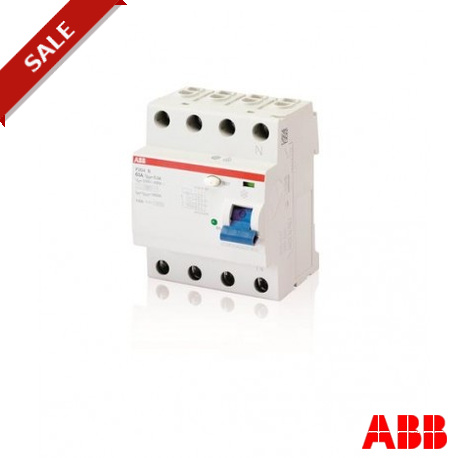

ABB F204B-25/0,03 F204B-25/0,03 2CSF204592R1250 ABB F204 B-25/0,03 Residual Current Dev. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F204B-25/0,03 2CSF204592R1250 ABB F204 B-25/0,03 Residual Current Dev.

F204B-25/0,03

2CSF204592R1250

ABB

1 Pcs.

F204 B-25/0,03 Residual Current Dev. Int.dif.F204B-25/0.03 4p 25 B 30mA

Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-phase electrical setups, the Abb F204B-25/0,03 residual current device continuously monitors line balance to interrupt circuits during dangerous earth faults. Such components serve a critical role in industrial control panels requiring advanced type B leakage detection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standards: EN 61008
  • Operating Characteristic: Instantaneous
  • Type of Residual Current: B type
  • Rated Residual Current: 30 mA
  • Rated Current (I n ): 25 A
  • Number of Poles: 4
  • Position of Neutral Terminals: Right
  • Power Loss: at Rated Operating Conditions per Pole 0.29 W
  • RoHS Information: 2CSC423006K2701
  • Product Net Width: 0.072 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.069 m
  • Product Net Weight: 0.500 kg
  • EAN: 8012542348139
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85363030

More info

▲

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Ordering

  • EAN:
    8012542348139
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85363030

Dimensions

  • Product Net Width:
    0.072m
  • Product Net Height:
    0.085m
  • Product Net Depth:
    0.069m
  • Product Net Weight:
    0.500kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.073 m
  • Package Level 1 Height:
    0.078 m
  • Package Level 1 Length:
    0.09 m
  • Package Level 1 Gross Weight:
    0.525 kg
  • Package Level 1 EAN:
    8012542348139

Technical

  • Standards:
    EN 61008
  • Operating Characteristic:
    Instantaneous
  • Type of Residual Current:
    B type
  • Rated Residual Current:
    30 mA
  • Rated Current (In):
    25 A
  • Number of Poles:
    4
  • Position of Neutral Terminals:
    Right
  • Power Loss:
    at Rated Operating Conditions per Pole 0.29 W

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC000003 - Residual current circuit breaker (RCCB)
  • ETIM 5:
    EC000003 - Residual current circuit breaker (RCCB)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
