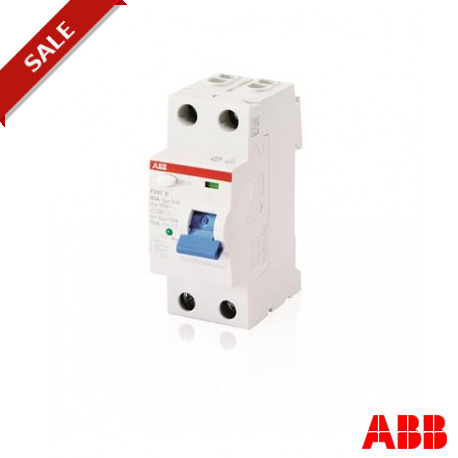

F202B-63/0,03 2CSF202592R1630 ABB F202 B-63/0,03 Residual Current Dev.
F202B-63/0,03
2CSF202592R1630
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguard electrical distribution networks using the Abb F202B-63/0,03 residual current device. Such components are routinely installed to detect earth leakage currents and rapidly disconnect power to mitigate shock risks and equipment damage in commercial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standards: EN 61008
- Operating Characteristic: Instantaneous
- Type of Residual Current: B type
- Rated Residual Current: 30 mA
- Rated Current (I n ): 63 A
- Number of Poles: 2
- Position of Neutral Terminals: Right
- Power Loss: at Rated Operating Conditions per Pole 4.22 W
- RoHS Information: 2CSC423006K2701
- Product Net Width: 0.035 m
- Product Net Height: 0.085 m
- Product Net Depth: 0.069 m
- Product Net Weight: 0.500 kg
- EAN: 8012542629634
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
More info
▲The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Ordering
- EAN:
- 8012542629634
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
Dimensions
- Product Net Width:
- 0.035m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.073 m
- Package Level 1 Height:
- 0.078 m
- Package Level 1 Length:
- 0.05 m
- Package Level 1 Gross Weight:
- 0.350 kg
- Package Level 1 EAN:
- 8012542629634
Technical
- Standards:
- EN 61008
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- B type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 63 A
- Number of Poles:
- 2
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 4.22 W
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC423009D2701
- RoHS Information:
- 2CSC423006K2701
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000003 - Residual current circuit breaker (RCCB)
- ETIM 5:
- EC000003 - Residual current circuit breaker (RCCB)
