View larger
Images are for illustrative purposes only. Please refer to data sheet for details

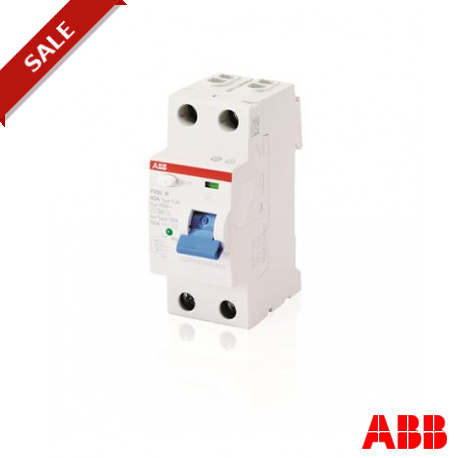

F202B-16/0,03 2CSF202592R1160 ABB F202 B-16/0,03 Residual Current Dev.
F202B-16/0,03
2CSF202592R1160
ABB
1 Pcs.
F202 B-16/0,03 Residual Current Dev.
Int.dif.F202B-16/0,03 2p 16 B 30mA
Automation > Residual current circuit breaker (RCCB)
Special F200 (B, 400Hz)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Ordering
- EAN:
- 8012542961932
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
Dimensions
- Product Net Width:
- 0.035m
- Product Net Height:
- 0.085m
- Product Net Depth:
- 0.069m
- Product Net Weight:
- 0.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.073 m
- Package Level 1 Height:
- 0.078 m
- Package Level 1 Length:
- 0.05 m
- Package Level 1 Gross Weight:
- 0.350 kg
- Package Level 1 EAN:
- 8012542961932
Technical
- Standards:
- EN 61008
- Operating Characteristic:
- Instantaneous
- Type of Residual Current:
- B type
- Rated Residual Current:
- 30 mA
- Rated Current (In):
- 16 A
- Number of Poles:
- 2
- Position of Neutral Terminals:
- Right
- Power Loss:
- at Rated Operating Conditions per Pole 0.02 W
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CSC423009D2701
- RoHS Information:
- 2CSC423006K2701
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC000003 - Residual current circuit breaker (RCCB)
- ETIM 5:
- EC000003 - Residual current circuit breaker (RCCB)
