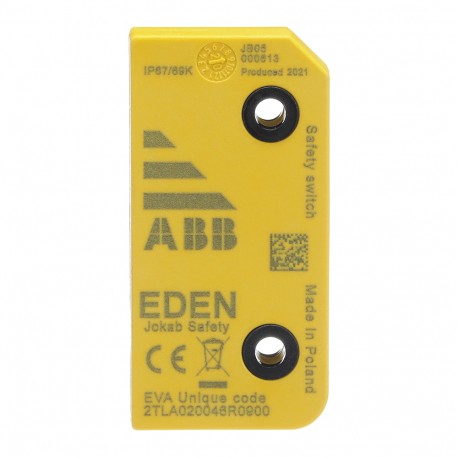

2TLA020046R0900 ABB Eva Codigo Unico
2TLA020046R0900
020046
ABB
1 Pcs.
Automation > Magnetic proximity switch
Fences and rolling doors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2TLA020046R0900 ABB Eva Codigo Unico serves as a dedicated actuator designed to pair with Adam safety sensors in machine interlocking systems. Safety actuators work alongside coded non-contact sensors to verify that safety guards and access gates remain properly closed during hazardous operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 8536508000
- Product Main Type: Eden
- Product Name: Actuator
- Function: Actuator for Adam sensor
- Status Indicator: No
- Data Sheet, Technical Information: 2TLC010044L0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC170156_EPLAN
- Marketing Video: 2TLC010018N0201
- Instructions and Manuals: 2TLC172271M0201
- Mounting Type: Not flat
- Product Net Depth / Length: 12 mm
- Product Net Height: 60 mm
- Product Net Width: 30 mm
- Product Net Weight: 0.026 kg
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | Eden |
| Product Name | Actuator |
| Function | Actuator for Adam sensor |
| Status Indicator | No |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010044L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170156_EPLAN |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172271M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 60 mm |
| Product Net Width | 30 mm |
| Product Net Weight | 0.026 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Süd |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Operating Distance (Sn) | 15 mm |
| PCB Coated | No |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 4X |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP67 |
| IP69K | |
| Material | Housing: Plastic (PBT) |
| Coating housing: Uncoated | |
| Moulding: Epoxy | |
| Operating Humidity (RHamb) | 35 to 85% (no icing, no condensation) |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 2TLC010222D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC172133D0201 |
| Declaration of Conformity - UKCA | 2TLC010159D0201 |
| TÜV Certificate | 2TLC172134D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.03 m |
| Package Level 1 Depth / Length | 0.06 m |
| Package Level 1 Height | 0.012 m |
| Package Level 1 Gross Weight | 0.029 kg |
| Package Level 1 EAN | 7350024480405 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| IDEA Granular Category Code (IGCC) | 3261 >> Electronic actuators |
| UNSPSC | 31251502 |
| Object Classification Code | B |
| E-Number (Sweden) | 3830213 |
