View larger
Images are for illustrative purposes only. Please refer to data sheet for details

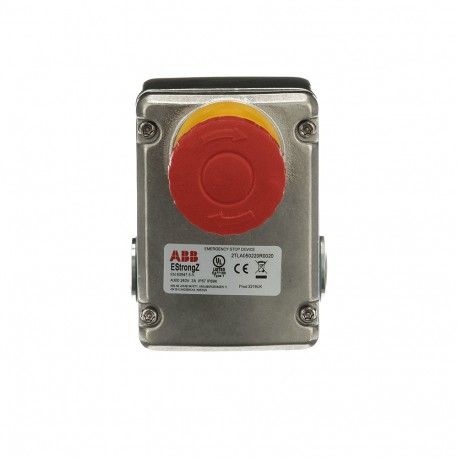

2TLA050220R0020 ABB EstrongZ E-Stop 2NC/2NO, M20, SS
2TLA050220R0020
050220
ABB
1 Pcs.
EstrongZ E-Stop 2NC/2NO, M20, SS
EstrongZ,Paro Emerg,Stainless Steel,2NC/2NA,M
EstrongZ Emergency stop button
Automation > Emergency stop complete
Emergency stops
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | EStrong |
| Product Name | Emergency stop button |
| Function | Turn-release |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2) | 2TLC010139D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC172247M0201 |
| Mounting Type | Surface mounting |
| Dimensions | |
| Product Net Depth / Length | 105 mm |
| Product Net Height | 94 mm |
| Product Net Width | 66 mm |
| Product Net Weight | 0.85 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Technical | |
| Rated Control Supply Voltage (Us) | 230 V AC |
| Rated Operational Voltage | 230 V AC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 80 °C |
| Degree of Protection | IP69K |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC172096D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 90 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 125 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 7350024467499 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371244 |
| ETIM 7 | EC002034 - Emergency stop complete |
| ETIM 8 | EC002034 - Emergency stop complete |
| ETIM 9 | EC002034 - Emergency stop complete |
| IDEA Granular Category Code (IGCC) | 4773 >> Emergency stop device |
| UNSPSC | 39121545 |
| Object Classification Code | B |
| E-Number (Sweden) | 3705165 |
| Feature Name | Feature Value |
|---|---|
| Unlocking method (EF001403) | Other |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Degree of protection (IP) (EF005474) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Mounting method (EF000003) | Surface mounting |
| With lighting (EF003829) | No |
| Connection type auxiliary circuit (EF006820) | Other |
