View larger
Images are for illustrative purposes only. Please refer to data sheet for details

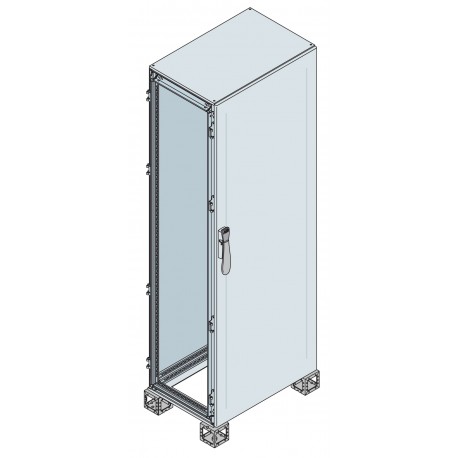

1STQ005371B0000 ABB IS2 BLIND DOOR HxWxD1600X600X400
1STQ005371B0000
005371
ABB
1 Pcs.
IS2 BLIND DOOR HxWxD1600X600X400
IS2 PRE-MONT. BLIND DOOR 1600X600X400
Control and Automation Board W 600 mm H 1600 mm D 400 mm
Automation > Enclosure/switchgear cabinet (empty)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 1. Cabinet with single door |
| Enclosure Type | Pre assembled - cabinet with blind door |
| Product Type | 5B5B10B110 |
| Door Type | Single |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| SCIP | d70aeb06-2cb3-4718-9cd9-0134428a4b21 Italy |
| Simplified SCIP | 23bd6f46-d9ca-400e-9fbd-3352779561d9 Germany |
| ef95f5ea-6a96-4d26-89b3-c9bd9fb3cb46 Spain | |
| e5debbd1-4a80-44b8-9509-84a1e2a65048 Germany | |
| 3d3f067d-5ea7-4e4c-9a32-8be6d7199816 Belgium | |
| 0573253e-910b-4b20-8f3b-7c29454ac723 Sweden | |
| 21af43c7-3938-40fc-8f7d-9291a52934aa France | |
| 1c4552e4-3fef-4f80-bf85-eae7ed189381 Bulgaria | |
| fedbe43e-1f0d-4073-9f5a-c88df50a26f3 Germany | |
| 751d775a-80b7-4db2-8e76-b617784a14e1 Germany | |
| 30cdb60c-0b75-4e38-813f-bb621a7ffc22 Belgium | |
| 5b32b746-daf1-40e6-a7e9-e1da9066944c Croatia | |
| 2e76bc94-3928-406d-be36-94f86bbdc816 Sweden | |
| 7247f2c3-f345-4e8e-bf2b-93ffaee4c4e3 Denmark | |
| 2db1f3d4-33b1-448b-9c05-17c381e8b857 Finland | |
| c27779cf-a935-4688-90d9-1c68910ad099 Norway | |
| 8429fe59-bde1-454b-9fde-55185d3b8d75 Poland | |
| a108d1ac-6e0b-4146-9b62-8769341cea41 Poland | |
| 39120fdf-d4f7-48f6-af66-302a8475dcf2 Greece | |
| 05404a76-7783-4d9f-b373-83cee3cd8943 Hungary | |
| dbc521db-41e6-43bf-bc05-c5da32c1ce84 Germany | |
| 17613c07-526f-44b9-bece-461d9d645900 France | |
| aa34e137-2551-4744-b00e-78969873c23b Portugal | |
| 19310f19-09dc-4e56-8505-ab812159d6ad Hungary | |
| ec0250e4-9b57-4585-83a0-0217bc679af3 Estonia | |
| eb6d472e-92b0-4dd6-8e90-0d2cdb9b2ce1 Netherlands | |
| a90cfffc-ccba-4589-a850-d598a24a4254 Czech Republic | |
| a913b3ea-afd7-4343-8f91-374b4c062418 Poland | |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 610 mm |
| Product Net Height | 1705 mm |
| Product Net Depth / Length | 440 mm |
| Product Net Weight | 69 kg |
| Reference Depth/Length | 400 mm |
| Reference Height | 1600 mm |
| Reference Width | 600 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 69 kg |
| Certificates and Declarations | |
| CSA Certificate (Intrinsic Safe) | 1STE000022 |
| Declaration of Conformity - CE | 1STC860113 |
| UL Certificate | 1STE000022 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Pre assembled |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.1 : 27180101 |
| Object Classification Code | U |
| Standards | NEMA 1, 12 |
