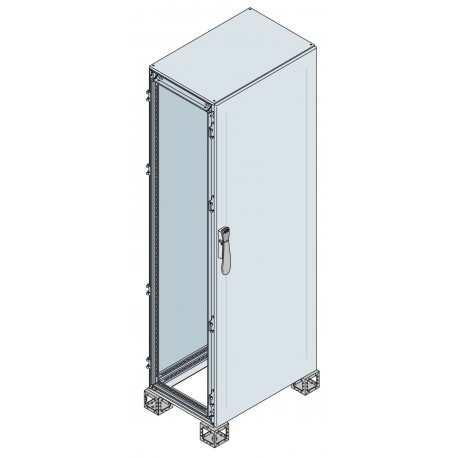

1STQ005387B0000 ABB IS2 BLIND DOOR HxWxD1600X400X800
1STQ005387B0000
005387
ABB
1 Pcs.
IS2 BLIND DOOR HxWxD1600X400X800
IS2 PRE-MONT. BLIND DOOR 1600X400X800
Control and Automation Board W 400 mm H 1600 mm D 800 mm
Automation > Enclosure/switchgear cabinet (empty)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1STQ005387B0000 ABB IS2 blind door provides a solid, opaque barrier for industrial control and automation enclosures, securing internal components from external contact.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Configuration Type: 1. Cabinet with single door
- Enclosure Type: Pre assembled - cabinet with blind door
- Product Type: 5B5B10B110
- Door Type: Single
- Door Surface Finishing: Opaque
- Remarks: ETIM
- Surface Finishing: Orange Peel, RAL 7035
- Material: Pickled steel sheet
- Door Material: Steel Sheet
- RAL Number: RAL 7035 - Light Grey
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 1. Cabinet with single door |
| Enclosure Type | Pre assembled - cabinet with blind door |
| Product Type | 5B5B10B110 |
| Door Type | Single |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 410 mm |
| Product Net Height | 1705 mm |
| Product Net Depth / Length | 840 mm |
| Product Net Weight | 77 kg |
| Reference Depth/Length | 800 mm |
| Reference Height | 1600 mm |
| Reference Width | 400 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 77 kg |
| Certificates and Declarations | |
| CSA Certificate (Intrinsic Safe) | 1STE000022 |
| Declaration of Conformity - CE | 1STC860113 |
| UL Certificate | 1STE000022 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Pre assembled |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.1 : 27180101 |
| Object Classification Code | U |
| Standards | NEMA 1, 12 |
