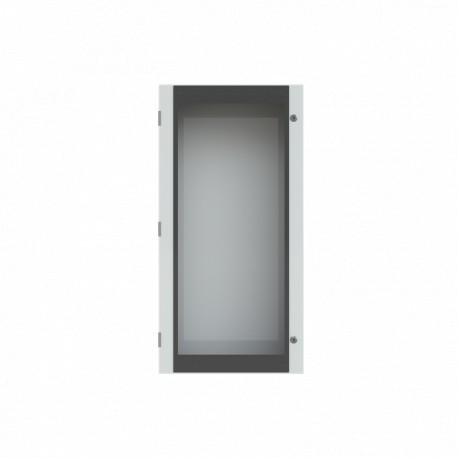

SRN12630K ABB ENCLOSURE BL.DOOR+PLATE1200X600X300 7035
SRN12630K
12630
ABB
1 Pcs.
Automation > Empty cabinet
TURATI SERIE SR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
SRN12630K ABB ENCLOSURE BL.DOOR+PLATE1200X600X300 7035 is a large-format industrial floor or wall cabinet utilized for centralizing factory automation controls and electrical distribution equipment. Industrial facilities depend on these robust steel enclosures to safeguard complex internal wiring configurations from external contaminants and unauthorized access.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108470A6068
- Suitable for Product Class: SR2
- Number of Flange Openings: 2
- Cover Plate Type: Door
- Enclosure Type NEMA: Type3R
- Door Type: Single
- Construction Material: Galvanized steel
- Door Surface Finishing: Opaque
- Accessories Available: Yes
- Impact Resistance Rating: IK10
- Surface Finishing: Powder coating
- Housing Material: Steel
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- RoHS Declaration: 9AKK108468A2382
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A6068 |
| Technical | |
| Suitable for Product Class | SR2 |
| Number of Flange Openings | 2 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type3R |
| Door Type | Single |
| Construction Material | Galvanized steel |
| Door Surface Finishing | Opaque |
| Accessories Available | Yes |
| Impact Resistance Rating | IK10 |
| Design | |
| Surface Finishing | Powder coating |
| Housing Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A2382 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221015 |
| REACH Declaration | 9AKK108469A7731 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Grounded (Class I) |
| Environmental Information | 1STC804013D0203 |
| Dimensions | |
| Product Net Width | 600 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 300 mm |
| Product Net Weight | 45.3 kg |
| Built-In Depth (t2) | 232 mm |
| Thickness | Cabinet Plate 1.2 mm |
| Door Plate 1.2 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 45.800 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A2382 |
| Installation | |
| Instructions and Manuals | 1STM6041230001 |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Object Classification Code | U |
